6682a1324d1593cf18bde0d6 Chemi-Con 565-EGXF351ELL200MJ25S-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6682a1334d1593cf18bde0e4/mfg_gxf.jpg

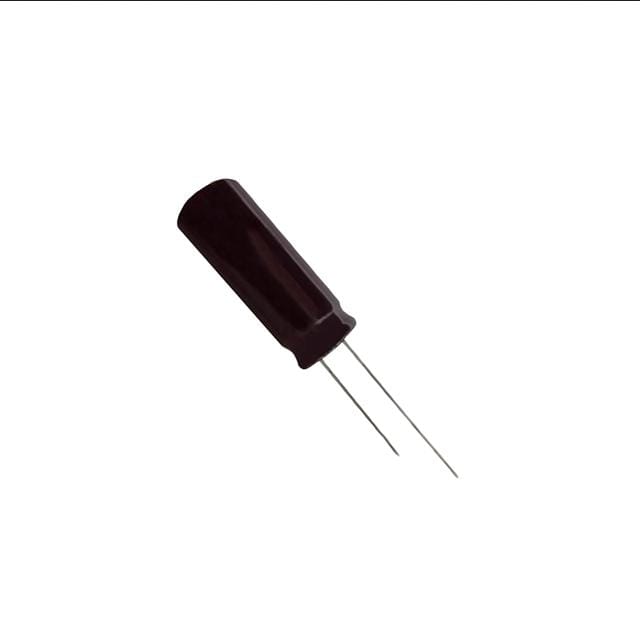

CAP ALUM 20UF 20% 350V RADIAL TH

Product Attributes:

Series GXF
Product Status Active
Capacitance 20 µF
Tolerance ±20%
Voltage - Rated 350 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 125°C
Operating Temperature -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 183 mA @ 120 Hz
Ripple Current @ High Frequency -
Impedance -
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
TT-DKEY-565-EGXF351ELL200MJ25S-ND
in stock INR 149.76000000000002
Chemi-Con
1 1

Chemi-Con 565-EGXF351ELL200MJ25S-ND

Sku: TT-DKEY-565-EGXF351ELL200MJ25S-ND
₹149.76


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 20UF 20% 350V RADIAL TH

Product Attributes:

Series GXF
Product Status Active
Capacitance 20 µF
Tolerance ±20%
Voltage - Rated 350 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 125°C
Operating Temperature -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 183 mA @ 120 Hz
Ripple Current @ High Frequency -
Impedance -
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
