67dbaba48f99450024261ed4 Chemi-Con 565-5147-2-ND,565-5147-1-ND,565-5147-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbaba68f99450024261ed7/mzr-series.jpg

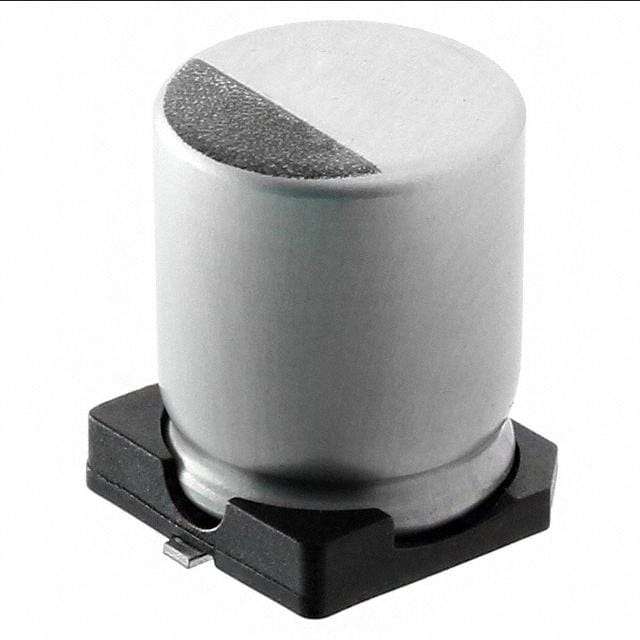

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series Alchip™- MZR
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 120 mA @ 120 Hz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance -
TT-DKEY-565-5147-2-ND,565-5147-1-ND,565-5147-6-ND
in stock INR
Chemi-Con
1 1
Chemi-Con 565-5147-2-ND,565-5147-1-ND,565-5147-6-ND

Chemi-Con 565-5147-2-ND,565-5147-1-ND,565-5147-6-ND

Sku: TT-DKEY-565-5147-2-ND,565-5147-1-ND,565-5147-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series Alchip™- MZR
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 120 mA @ 120 Hz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance -
