67dbaadb8f994500242617aa Chemi-Con 565-4246-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbaadc8f994500242617ae/epag401ell101ml30s.jpg

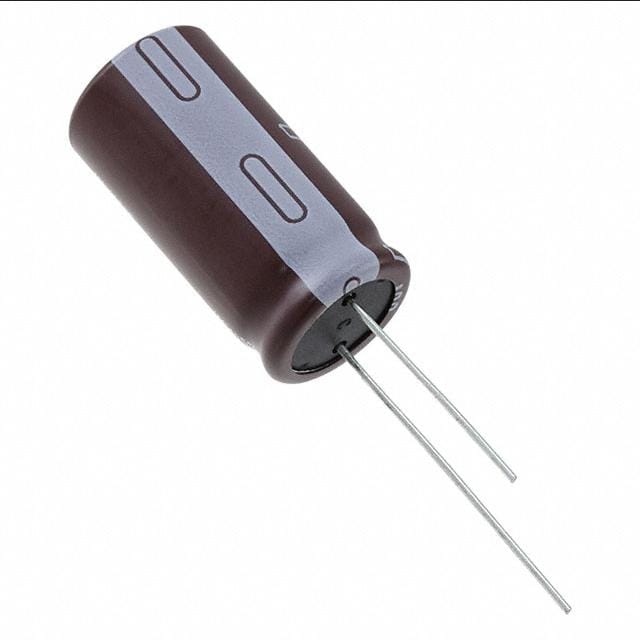

CAP ALUM 100UF 20% 400V RADIAL

Product Attributes:

Series PAG
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 580 mA @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 870 mA @ 100 kHz
Impedance -
TT-DKEY-565-4246-ND
in stock INR
Chemi-Con
1 1
Chemi-Con 565-4246-ND

Chemi-Con 565-4246-ND

Sku: TT-DKEY-565-4246-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 100UF 20% 400V RADIAL

Product Attributes:

Series PAG
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 580 mA @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 870 mA @ 100 kHz
Impedance -
