67dbaadfc0d1da0024d14d6f Chemi-Con 565-4076-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbaae0c0d1da0024d14d8f/kznpercent20seriespercent2016x33mm.jpg

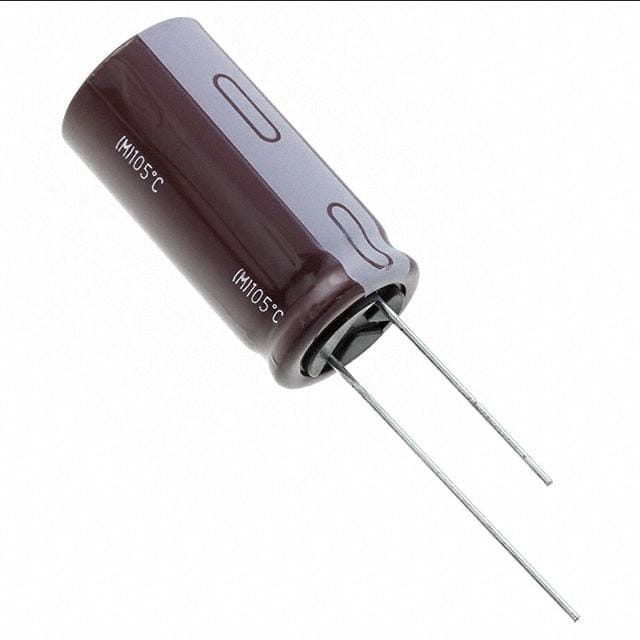

CAP ALUM 1500UF 20% 50V RADIAL

Product Attributes:

SeriesKZN
Product StatusActive
Capacitance1500 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.10000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency2.418 A @ 120 Hz
Lead Spacing0.295" (7.50mm)
Size / Dimension0.630" Dia (16.00mm)
Height - Seated (Max)1.299" (33.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Ripple Current @ High Frequency4.03 A @ 100 kHz
Impedance19 mOhms
TT-DKEY-565-4076-ND
in stockINR 326.14400000000006
Chemi-Con
1 1
Chemi-Con 565-4076-ND

Chemi-Con 565-4076-ND

Sku: TT-DKEY-565-4076-ND
₹326.14


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 1500UF 20% 50V RADIAL

Product Attributes:

SeriesKZN
Product StatusActive
Capacitance1500 µF
Tolerance±20%
Voltage - Rated50 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.10000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency2.418 A @ 120 Hz
Lead Spacing0.295" (7.50mm)
Size / Dimension0.630" Dia (16.00mm)
Height - Seated (Max)1.299" (33.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Ripple Current @ High Frequency4.03 A @ 100 kHz
Impedance19 mOhms
