67dbab660817ad002441b55d Chemi-Con 565-1824-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbab670817ad002441b56c/lxypercent20seriespercent2020hpercent2c16d.jpg

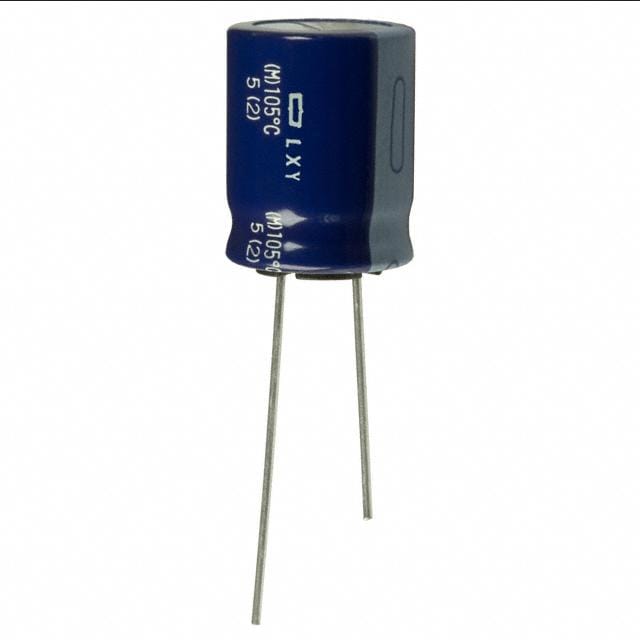

CAP ALUM 1000UF 20% 35V RADIAL

Product Attributes:

Series LXY
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 978 mA @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 1.63 A @ 100 kHz
Impedance 38 mOhms
TT-DKEY-565-1824-ND
in stock INR
Chemi-Con
1 1
Chemi-Con 565-1824-ND

Chemi-Con 565-1824-ND

Sku: TT-DKEY-565-1824-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 1000UF 20% 35V RADIAL

Product Attributes:

Series LXY
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 978 mA @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 1.63 A @ 100 kHz
Impedance 38 mOhms
