6682a1be4a1f2b9f7640d66a Chemi-Con 565-1816-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6682a1c04a1f2b9f7640d68d/lxypercent20seriespercent2016hpercent2c10d.jpg

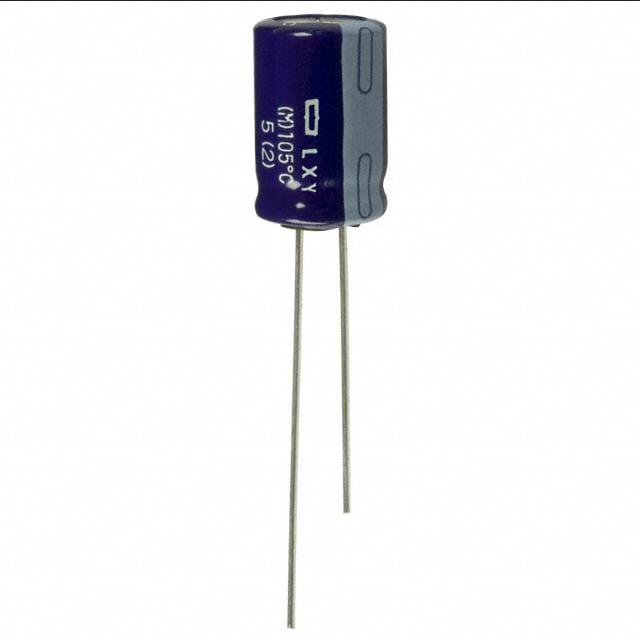

CAP ALUM 220UF 20% 35V RADIAL

Product Attributes:

Series LXY
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 412.5 mA @ 120 Hz
Ripple Current @ High Frequency 825 mA @ 100 kHz
Impedance 84 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
TT-DKEY-565-1816-ND
in stock INR 89.28
Chemi-Con
1 1

Chemi-Con 565-1816-ND

Sku: TT-DKEY-565-1816-ND
₹89.28


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 220UF 20% 35V RADIAL

Product Attributes:

Series LXY
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 412.5 mA @ 120 Hz
Ripple Current @ High Frequency 825 mA @ 100 kHz
Impedance 84 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
