667aa92d3bfefe08f476ee66 Analog Devices Inc./Maxim Integrated 505-QSH6018-65-28-210-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa92e3bfefe08f476ee80/qsh6018-65-28-210.jpg

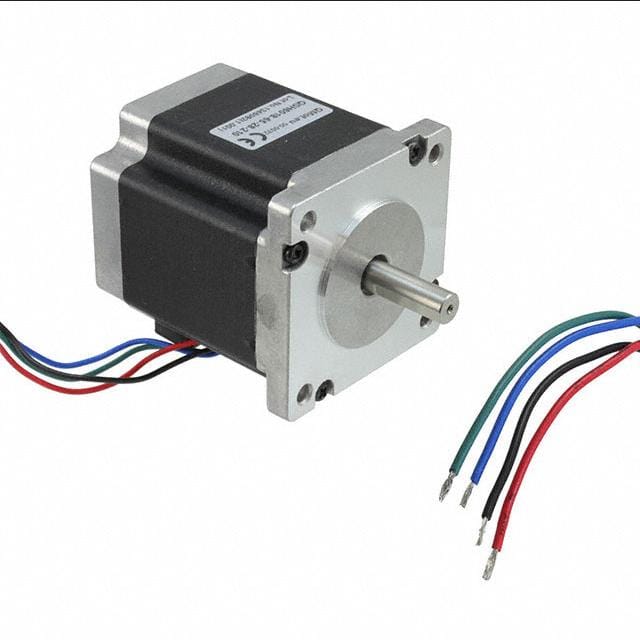

STEP MOTOR HYBRID BIPOLAR 3.36V

Product Attributes:

Series QMot QSH6018
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.36VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 297.38 / 2100
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.2 Ohms
Features Flatted Shaft
Current Rating (Amps) 2.8 A
NEMA Frame Size 24
TT-DKEY-505-QSH6018-65-28-210-ND
in stock INR
Analog Devices Inc./Maxim Integrated
1 1
Analog Devices Inc./Maxim Integrated 505-QSH6018-65-28-210-ND

Analog Devices Inc./Maxim Integrated 505-QSH6018-65-28-210-ND

Sku: TT-DKEY-505-QSH6018-65-28-210-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP MOTOR HYBRID BIPOLAR 3.36V

Product Attributes:

Series QMot QSH6018
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.36VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 297.38 / 2100
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.945" (24.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.2 Ohms
Features Flatted Shaft
Current Rating (Amps) 2.8 A
NEMA Frame Size 24
