667aa959c8ad718ae3e30966 Analog Devices Inc./Maxim Integrated 505-PD20-1-1210-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa95ac8ad718ae3e30999/pd20-1-1210.jpg

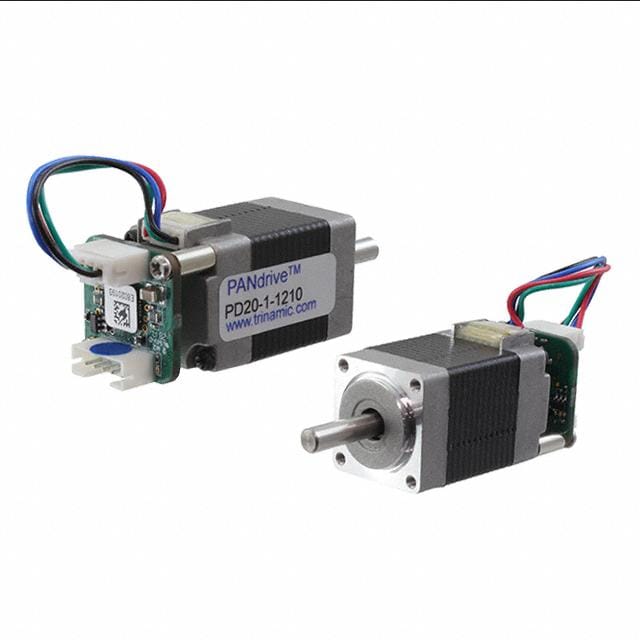

PANDRIVE NEMA08, 24V, 1.75NCM

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 2.48 / 17.5
Size / Dimension Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 6.5 Ohms
Features Integrated Controller, Round Shaft
Current Rating (Amps) 600 mA
NEMA Frame Size 8
TT-DKEY-505-PD20-1-1210-ND
in stock INR
Analog Devices Inc./Maxim Integrated
1 1
Analog Devices Inc./Maxim Integrated 505-PD20-1-1210-ND

Analog Devices Inc./Maxim Integrated 505-PD20-1-1210-ND

Sku: TT-DKEY-505-PD20-1-1210-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

PANDRIVE NEMA08, 24V, 1.75NCM

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 2.48 / 17.5
Size / Dimension Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Diameter - Shaft 0.157" (4.00mm)
Length - Shaft and Bearing 0.591" (15.00mm)
Mounting Hole Spacing 0.630" (16.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 6.5 Ohms
Features Integrated Controller, Round Shaft
Current Rating (Amps) 600 mA
NEMA Frame Size 8
