667aa92a119f4e0896d1955c Analog Devices Inc./Maxim Integrated 505-QSH4218-47-28-040-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa92a119f4e0896d19570/qsh4218-47-28-040.jpg

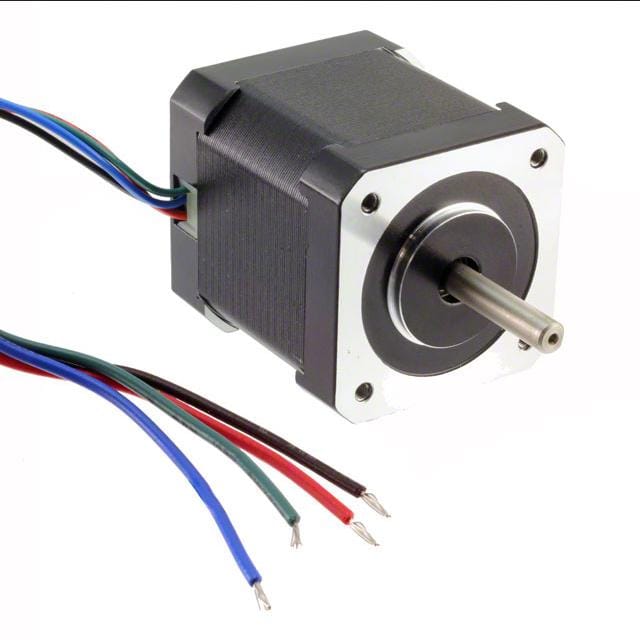

STEP MOTOR HYBRID BIPOLAR 1.4V

Product Attributes:

SeriesQMot QSH4218
Product StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated1.4VDC
Steps per Revolution200.0
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)56.3 / 400
Size / DimensionSquare - 1.665" x 1.665" (42.30mm x 42.30mm)
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (30.99mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance1.5 Ohms
FeaturesFlatted Shaft
Current Rating (Amps)2.81 A
NEMA Frame Size17
TT-DKEY-505-QSH4218-47-28-040-ND
in stockINR 9859.679999999998
Analog Devices Inc./Maxim Integrated
1 1
Analog Devices Inc./Maxim Integrated 505-QSH4218-47-28-040-ND

Analog Devices Inc./Maxim Integrated 505-QSH4218-47-28-040-ND

Sku: TT-DKEY-505-QSH4218-47-28-040-ND
₹9,859.68


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP MOTOR HYBRID BIPOLAR 1.4V

Product Attributes:

SeriesQMot QSH4218
Product StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated1.4VDC
Steps per Revolution200.0
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)56.3 / 400
Size / DimensionSquare - 1.665" x 1.665" (42.30mm x 42.30mm)
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (30.99mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance1.5 Ohms
FeaturesFlatted Shaft
Current Rating (Amps)2.81 A
NEMA Frame Size17
