667aa8b4bb91ad4f9f1e3f32 Analog Devices Inc./Maxim Integrated 505-QSH2818-32-07-006-8K-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa8b4bb91ad4f9f1e3f41/qsh2818-32-07-006-8192-at.jpg

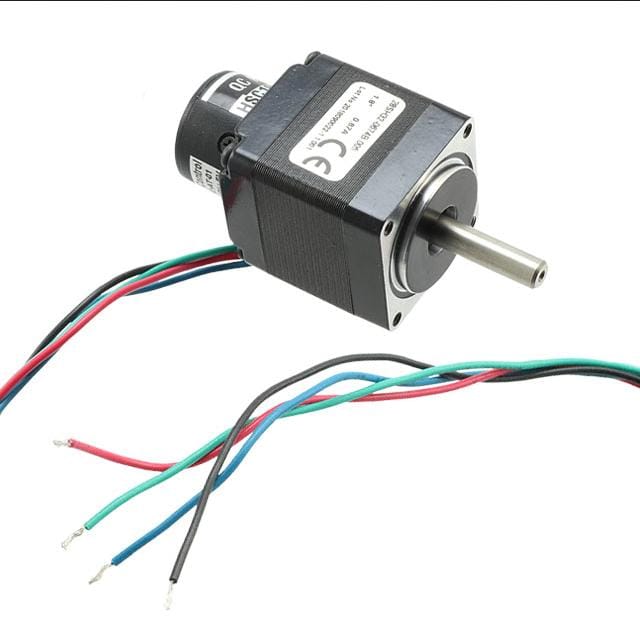

STEP MOTOR HYBRID NEMA11 ENC 819

Product Attributes:

Series QMot QSH2818
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.8VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 8.49 / 60
Size / Dimension Square - 1.100" x 1.100" (28.00mm x 28.00mm)
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.787" (20.00mm)
Mounting Hole Spacing 0.906" (23.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.6 Ohms
Features Flatted Shaft
Current Rating (Amps) 670 mA
NEMA Frame Size 11
TT-DKEY-505-QSH2818-32-07-006-8K-ND
in stock INR
Analog Devices Inc./Maxim Integrated
1 1
Analog Devices Inc./Maxim Integrated 505-QSH2818-32-07-006-8K-ND

Analog Devices Inc./Maxim Integrated 505-QSH2818-32-07-006-8K-ND

Sku: TT-DKEY-505-QSH2818-32-07-006-8K-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP MOTOR HYBRID NEMA11 ENC 819

Product Attributes:

Series QMot QSH2818
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 3.8VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 8.49 / 60
Size / Dimension Square - 1.100" x 1.100" (28.00mm x 28.00mm)
Diameter - Shaft 0.197" (5.00mm)
Length - Shaft and Bearing 0.787" (20.00mm)
Mounting Hole Spacing 0.906" (23.00mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 50°C
Coil Resistance 5.6 Ohms
Features Flatted Shaft
Current Rating (Amps) 670 mA
NEMA Frame Size 11
