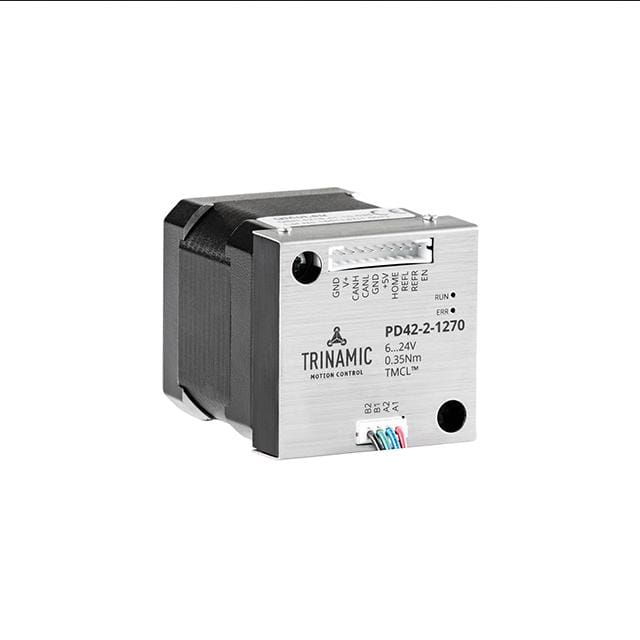

PANDRIVE NEMA17, 24V, 50 OZ IN/

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 51 / 360
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft -
Length - Shaft and Bearing -
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.2 Ohms
Features Integrated Controller, Round Shaft
Current Rating (Amps) 1 A
NEMA Frame Size 17
TT-DKEY-505-PD42-2-1270-TMCL-ND
in stock INR
Analog Devices Inc./Maxim Integrated
1 1
Analog Devices Inc./Maxim Integrated 505-PD42-2-1270-TMCL-ND

Analog Devices Inc./Maxim Integrated 505-PD42-2-1270-TMCL-ND

Sku: TT-DKEY-505-PD42-2-1270-TMCL-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

PANDRIVE NEMA17, 24V, 50 OZ IN/

Product Attributes:

Series PANdrive™
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy ±5%
Torque - Holding (oz-in / mNm) 51 / 360
Size / Dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Diameter - Shaft -
Length - Shaft and Bearing -
Mounting Hole Spacing 1.220" (31.00mm)
Termination Style Connector
Operating Temperature -20°C ~ 50°C
Coil Resistance 1.2 Ohms
Features Integrated Controller, Round Shaft
Current Rating (Amps) 1 A
NEMA Frame Size 17
