67dc071ffdcecc002be3a012 Nichicon 493-6186-2-ND,493-6186-1-ND,493-6186-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dc071ffdcecc002be3a01a/cdpercent20seriespercent2010-50mm.jpg

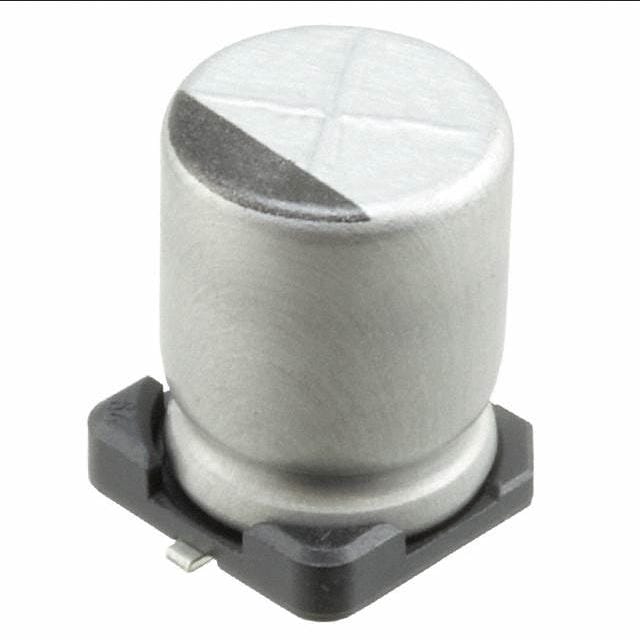

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series UCD
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
TT-DKEY-493-6186-2-ND,493-6186-1-ND,493-6186-6-ND
in stock INR
Nichicon
1 1
Nichicon 493-6186-2-ND,493-6186-1-ND,493-6186-6-ND

Nichicon 493-6186-2-ND,493-6186-1-ND,493-6186-6-ND

Sku: TT-DKEY-493-6186-2-ND,493-6186-1-ND,493-6186-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series UCD
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
