67d817812d3541002b0ab8dc AIC tech Inc. 4193-VFL2W222YC125-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67d817822d3541002b0ab8df/mfg_vfl2w222yc125.jpg

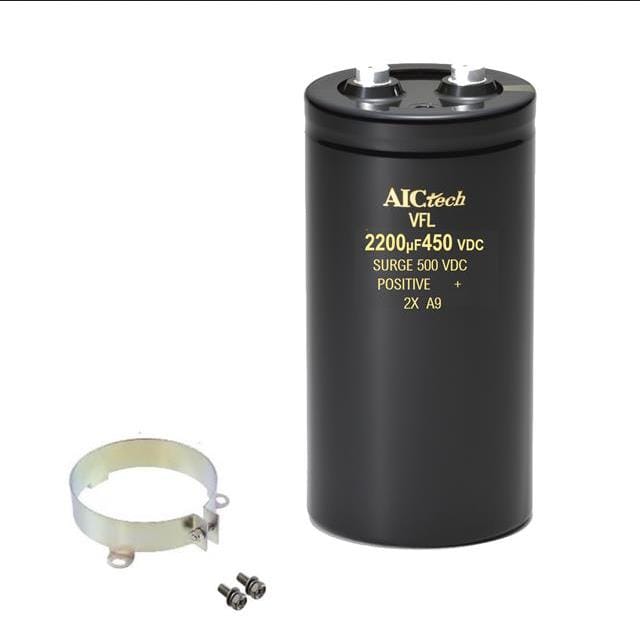

CAP ALUM 2200UF 20% 450V SCREW

Product Attributes:

Series VFL
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 47mOhm @ 100Hz
Lifetime @ Temp. 8000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 9.4 A @ 120 Hz
Lead Spacing 0.866" (22.00mm)
Size / Dimension 2.008" Dia (51.00mm)
Height - Seated (Max) 5.000" (127.00mm)
Surface Mount Land Size -
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Ripple Current @ High Frequency 13.16 A @ 10 kHz
Impedance 50 mOhms
TT-DKEY-4193-VFL2W222YC125-ND
in stock INR
AIC tech Inc.
1 1
AIC tech Inc. 4193-VFL2W222YC125-ND

AIC tech Inc. 4193-VFL2W222YC125-ND

Sku: TT-DKEY-4193-VFL2W222YC125-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 2200UF 20% 450V SCREW

Product Attributes:

Series VFL
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 47mOhm @ 100Hz
Lifetime @ Temp. 8000 Hrs @ 85°C
Operating Temperature -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 9.4 A @ 120 Hz
Lead Spacing 0.866" (22.00mm)
Size / Dimension 2.008" Dia (51.00mm)
Height - Seated (Max) 5.000" (127.00mm)
Surface Mount Land Size -
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Ripple Current @ High Frequency 13.16 A @ 10 kHz
Impedance 50 mOhms
