61234946505cceb3b962c92d Portescap 403-1034-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/61234947505cceb3b962c95c/webp/35dbm10b2u-l.jpg

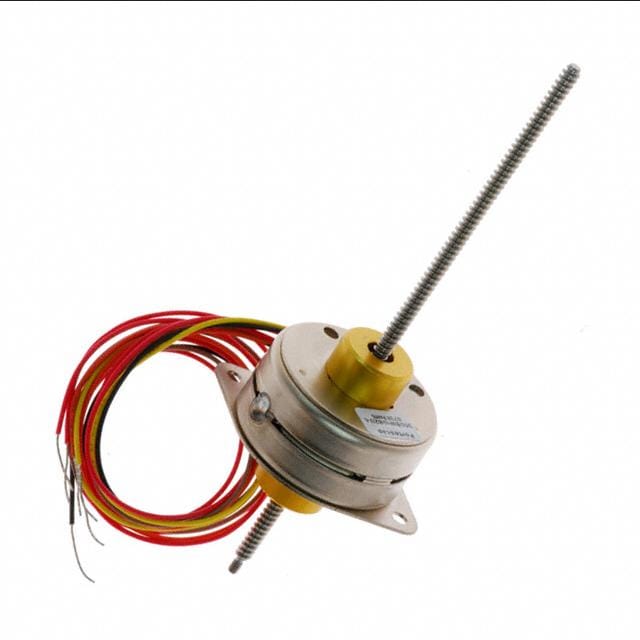

STEPPER MOTOR PM LINEAR ACT 12V

Product Attributes:

Series35DBM-L
Part StatusActive
TypePermanent Magnet Linear Actuator
Coil TypeUnipolar
Voltage - Rated12VDC
Current Rating (Amps)210 mA
Steps per Revolution48
Step Angle7.5°
Accuracy±15%
Torque - Holding (oz-in / mNm)-
Size / DimensionRound - 1.420" Dia (35.94mm)
NEMA Frame Size-
Diameter - Shaft0.138" (3.51mm)
Length - Shaft and Bearing1.600" (40.56mm)
Mounting Hole Spacing1.650" (42.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 70°C
Coil Resistance58 Ohms
FeaturesThreaded Shaft
TT-DKEY-403-1034-ND
in stockINR 10642.30446
Portescap
1 1
Portescap 403-1034-ND

Portescap 403-1034-ND

Sku: TT-DKEY-403-1034-ND
₹10,642.3


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR PM LINEAR ACT 12V

Product Attributes:

Series35DBM-L
Part StatusActive
TypePermanent Magnet Linear Actuator
Coil TypeUnipolar
Voltage - Rated12VDC
Current Rating (Amps)210 mA
Steps per Revolution48
Step Angle7.5°
Accuracy±15%
Torque - Holding (oz-in / mNm)-
Size / DimensionRound - 1.420" Dia (35.94mm)
NEMA Frame Size-
Diameter - Shaft0.138" (3.51mm)
Length - Shaft and Bearing1.600" (40.56mm)
Mounting Hole Spacing1.650" (42.00mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 70°C
Coil Resistance58 Ohms
FeaturesThreaded Shaft
