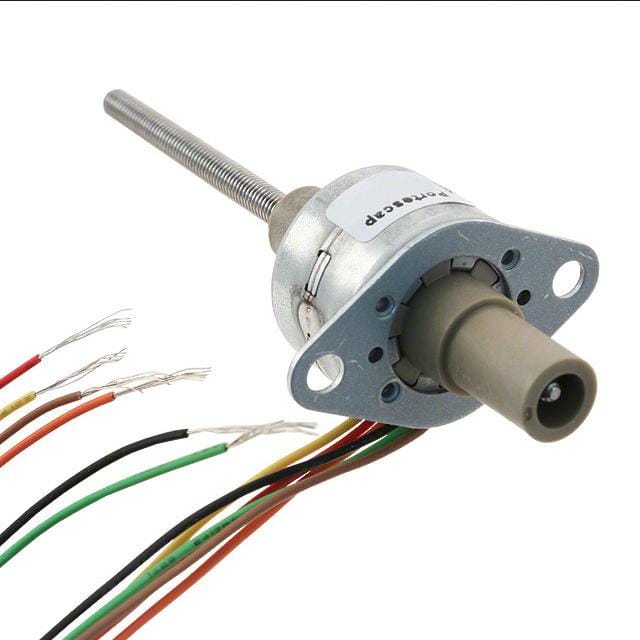

6123491d5897566b8b6275ab Portescap 403-1030-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/6123491e5897566b8b6275da/webp/20dam10d2u-l.jpg

STEPPER MOTOR PM LINEAR ACT 12V

Product Attributes:

Series 20DAM-L
Part Status Active
Type Permanent Magnet Linear Actuator
Coil Type Unipolar
Voltage - Rated 12VDC
Current Rating (Amps) 100 mA
Steps per Revolution 24
Step Angle 15°
Accuracy -
Torque - Holding (oz-in / mNm) -
Size / Dimension Round - 0.807" Dia (20.50mm)
NEMA Frame Size -
Diameter - Shaft 0.135" (3.43mm)
Length - Shaft and Bearing 3.150" (80.00mm)
Mounting Hole Spacing 1.030" (26.16mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 70°C
Coil Resistance 115.2 Ohms
Features Threaded Shaft
TT-DKEY-403-1030-ND
in stock INR 7757.742498
Portescap
1 1

Portescap 403-1030-ND

Sku: TT-DKEY-403-1030-ND
₹7,757.74


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEPPER MOTOR PM LINEAR ACT 12V

Product Attributes:

Series 20DAM-L
Part Status Active
Type Permanent Magnet Linear Actuator
Coil Type Unipolar
Voltage - Rated 12VDC
Current Rating (Amps) 100 mA
Steps per Revolution 24
Step Angle 15°
Accuracy -
Torque - Holding (oz-in / mNm) -
Size / Dimension Round - 0.807" Dia (20.50mm)
NEMA Frame Size -
Diameter - Shaft 0.135" (3.43mm)
Length - Shaft and Bearing 3.150" (80.00mm)
Mounting Hole Spacing 1.030" (26.16mm)
Termination Style Wire Leads
Operating Temperature -20°C ~ 70°C
Coil Resistance 115.2 Ohms
Features Threaded Shaft
