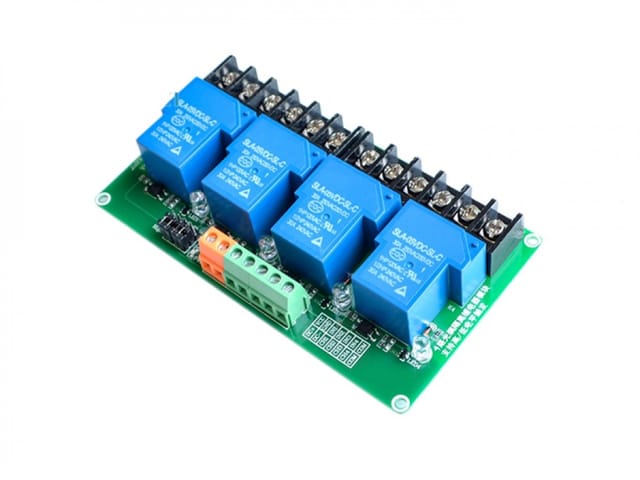

616eb1a493989b36a35ca074 4 Relay Module 30A https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/616eb19803385f6c2d4b27ec/webp/4-relay-module-30a.jpg

Description:

This is a 4 channels Relay module, which can able to control various appliances and other equipment with a BIG current for 30A (250V AC/30V DC). It can be controlled directly by microcontroller: Raspberry, Arduino, AVR, PIC, DSP, ARM, or TTL logic. For control of module need power 5V and logic operation 3.3V/5V. To isolate the microcontroller from the relay, we added optocoupler. Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay. This solution saves your microcontroller from a high voltage for VAC/VDC.

Features:

  • Working voltage: DC 5V
  • Max Control Capacity:30A@250V AC or 30A@30V DC
  • Active level: High or LOW(Set by 2x4 header)

Package List:

  • 1 x 4 Relay Module 30A
TT-MF-MAR5304RM
in stockINR 1398.4
Makerfabs
1 1
4 Relay Module 30A

4 Relay Module 30A

Sku: TT-MF-MAR5304RM
₹1,398.4


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

This is a 4 channels Relay module, which can able to control various appliances and other equipment with a BIG current for 30A (250V AC/30V DC). It can be controlled directly by microcontroller: Raspberry, Arduino, AVR, PIC, DSP, ARM, or TTL logic. For control of module need power 5V and logic operation 3.3V/5V. To isolate the microcontroller from the relay, we added optocoupler. Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay. This solution saves your microcontroller from a high voltage for VAC/VDC.

Features:

  • Working voltage: DC 5V
  • Max Control Capacity:30A@250V AC or 30A@30V DC
  • Active level: High or LOW(Set by 2x4 header)

Package List:

  • 1 x 4 Relay Module 30A
