Description:

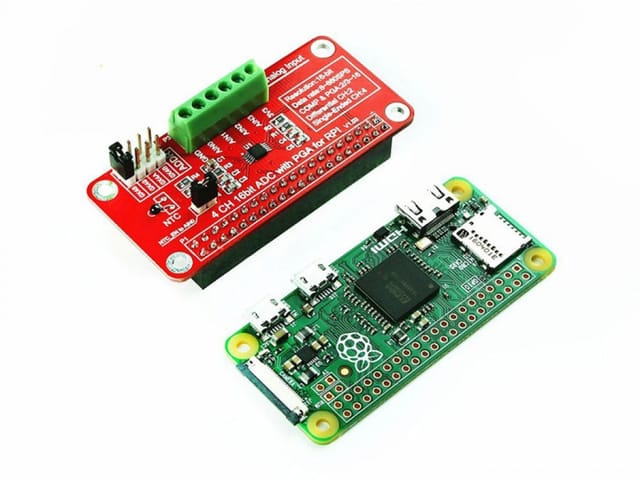

The Raspberry Pi does not have the analog reading ability, which limits many of usage& application. This A/D module provides the ability to read analog data for Raspberry Pi. The ADS1115 is analog-to-digital converters (ADCs) with 16 bits, it converts the analog data to digital and transferred them to Raspberry Pi via I2C Bus. it operates from a single power supply at 3.3V. with this module, your Raspberry Pi can work with analog sensors such as a joystick, NTC, temperature, dust sensor, etc.

How to wire up?
Just Plug into GPIO with this module.
NOTE: Please beware of the No.1 Pin is fit for your GPIO No.1 Pin.

Features:

• Size: 65.0mm x 30.0mm x 18.0mm
• Analog Input Voltage: GND to VDD
• PROGRAMMABLE DATA RATE: 8SPS to 860SPS
• INTERNAL LOW-DRIFT: VOLTAGE REFERENCE
• INTERNAL PGA: Available
• Resolution 16-bit
• I2C™ INTERFACE: Pin-Selectable Addresses
• Channels Number: 4 SINGLE-ENDED OR 2 DIFFERENTIAL INPUTS
• PROGRAMMABLE COMPARATOR: 2/3 ~ 16
• INTERNAL NTC Support: Available

Package List:

• 1 x ADS1115 Module (Not include the Raspberry PI)

Documents:

• Usage
