Description:

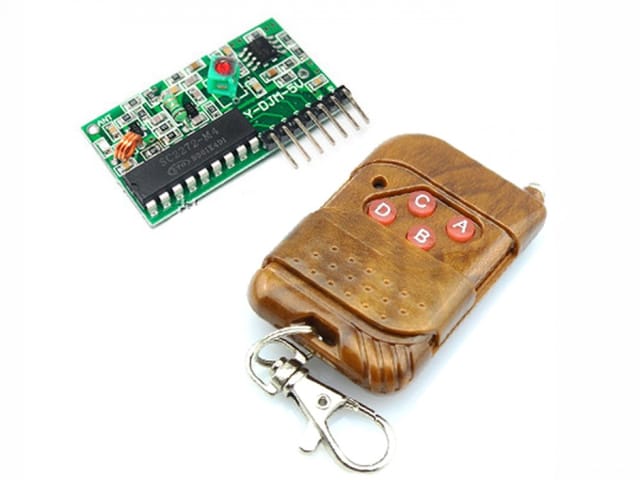

4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computers, etc. RF transmitter provides up to 150m range. The selection of custom address codes (by soldering pins) allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low-cost digital 4013 IC. 12V (27A) alkaline battery is included.

Features:

• 4 Momentary Outputs
• 150m Transmission Rang
• Rock-solid oscillator provides reliable operation
• Valid transmission LED status through VT connection
• High noise immunity
• Terminal pins provide simple connection to the power supply and four devices

RF Transmitter Specifications:

• Voltage Supply: 12V (Included 27A Alkaline Battery)
• Transmission Frequency: 315MHz
• Transmission Range: 150m
• Dimensions: 62 mm x 38 mm x 14 mm

RF Receiver Specifications:

• Voltage Supply: 5V
• Transmission Frequency: 315MHz
• Output Mode: Momentary
• Power Consumption: 5 mA
• Receiving Sensitivity: -101 dBm
• Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
• Dimensions: 41 mm x 23 mm x 7mm

Package List:

• 1 x RF Transmitter
• 1 x RF Receiver
