- Home
- MOTORS/ACTUATORS/SOLEENOIDS/DRIVERS
- Stepper Motors
- Sanyo Denki SanMotion Products 2300-SM2861-5122-ND

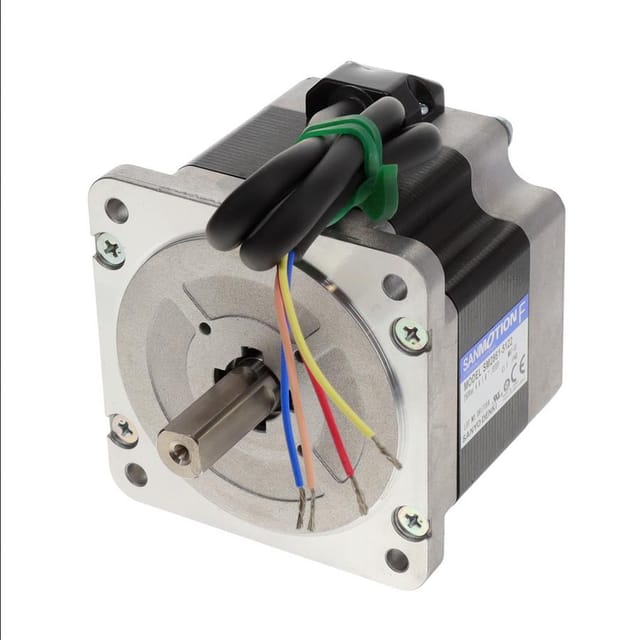

Sanyo Denki SanMotion Products 2300-SM2861-5122-ND
Sku:
TT-DKEY-2300-SM2861-5122-ND
SIZE GUIDE
Product Enquiry
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
Sold By:
tenettech
Features
- Shipping in 10-12 Working Days
Description of product
STEP, F2, SQ.86, 1.8, HALF INCH
Product Attributes:
| Series | - |
| Product Status | Active |
| Type | Hybrid, Dual Shaft |
| Coil Type | Bipolar |
| Voltage - Rated | 100VAC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 467.3 / 3300 |
| Size / Dimension | Square - 3.386" x 3.386" (86.00mm x 86.00mm) |
| Diameter - Shaft | 0.500" (12.70mm) |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Mounting Hole Spacing | 2.740" (69.60mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -10°C ~ 50°C |
| Coil Resistance | 560 Ohms |
| Features | - |
| Current Rating (Amps) | 4 A |
| NEMA Frame Size | 34 |
