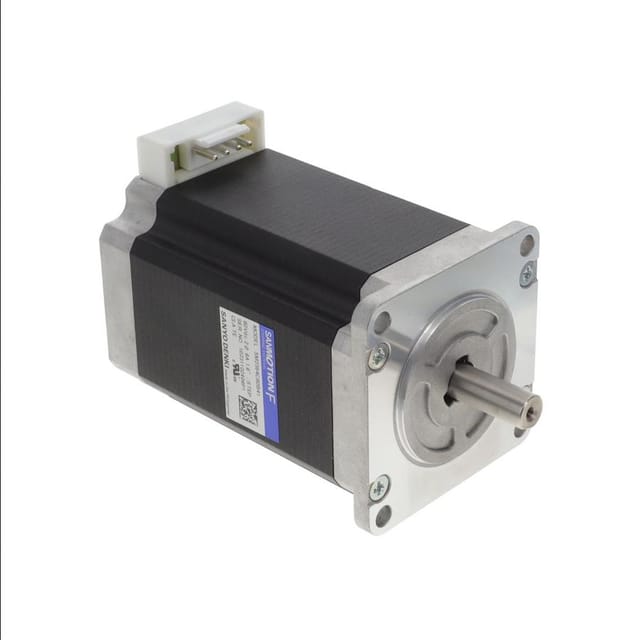

Sanyo Denki SanMotion Products 2300-SM2564C60B41P-ND
Sku: TT-DKEY-2300-SM2564C60B41P-ND
₹8,857.44
Features
- Shipping in 10-12 Working Days
Description of product
F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Product Attributes:
| Series | SM |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | - |
| Torque - Holding (oz-in / mNm) | 354 / 2500 |
| Size / Dimension | Square - 2.205" x 2.205" (56.00mm x 56.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Termination Style | Connector |
| Operating Temperature | - |
| Coil Resistance | 270 mOhms |
| Features | Double Flatted Shaft |
| Current Rating (Amps) | 6 A |
| NEMA Frame Size | - |
