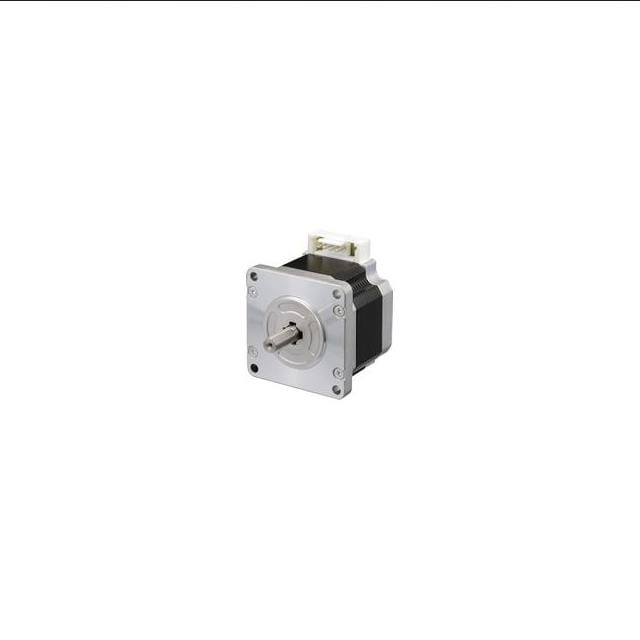

667aa8dc86e5988a7e3fb241 Sanyo Denki SanMotion Products 2300-103H7823-1760-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/667aa8dd86e5988a7e3fb25b/mfg_103h7821-1730.jpg

STEP, F2, SQ.60, 1.8, NEMA, , BI

Product Attributes:

Series H
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 382.4 / 2700
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -10°C ~ 50°C
Coil Resistance 0.65 Ohms
Features -
Current Rating (Amps) 4 A
NEMA Frame Size 23
TT-DKEY-2300-103H7823-1760-ND
in stock INR
Sanyo Denki SanMotion Products
1 1
Sanyo Denki SanMotion Products 2300-103H7823-1760-ND

Sanyo Denki SanMotion Products 2300-103H7823-1760-ND

Sku: TT-DKEY-2300-103H7823-1760-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

STEP, F2, SQ.60, 1.8, NEMA, , BI

Product Attributes:

Series H
Product Status Active
Type Hybrid
Coil Type Bipolar
Voltage - Rated 24VDC
Steps per Revolution 200.0
Step Angle 1.8°
Accuracy -
Torque - Holding (oz-in / mNm) 382.4 / 2700
Size / Dimension Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Diameter - Shaft 0.315" (8.00mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Mounting Hole Spacing 1.856" (47.14mm)
Termination Style Wire Leads
Operating Temperature -10°C ~ 50°C
Coil Resistance 0.65 Ohms
Features -
Current Rating (Amps) 4 A
NEMA Frame Size 23
