67a70cce1320e6002bfe832c Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1082-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67a70ccf1320e6002bfe832f/152099-226.jpg

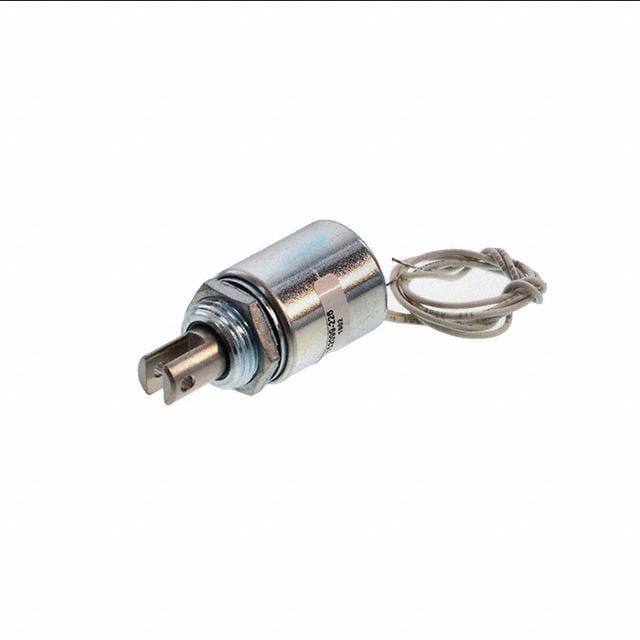

TUBULAR SOLENOID STA PULL 1 X 1-

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated6VDC
Stroke Length0.375" (9.53mm)
Power (Watts)9.4 W
DC Resistance (DCR)3.9Ohm
Bushing Thread3/4-16 UNF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension1.000" Dia x 1.125" L (25.40mm x 28.58mm)
Diameter - Shaft0.437" (11.10mm)
Shaft DetailClevis
TT-DKEY-2024-1082-ND
in stockINR 2962.08
Ledex Dormeyer Saia, a Division of Johnson Electric
1 1
Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1082-ND

Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1082-ND

Sku: TT-DKEY-2024-1082-ND
₹2,962.08


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

TUBULAR SOLENOID STA PULL 1 X 1-

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated6VDC
Stroke Length0.375" (9.53mm)
Power (Watts)9.4 W
DC Resistance (DCR)3.9Ohm
Bushing Thread3/4-16 UNF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension1.000" Dia x 1.125" L (25.40mm x 28.58mm)
Diameter - Shaft0.437" (11.10mm)
Shaft DetailClevis
