67a70d4d54caaf002465ce13 Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1075-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67a70d4e54caaf002465ce16/195204-227.jpg

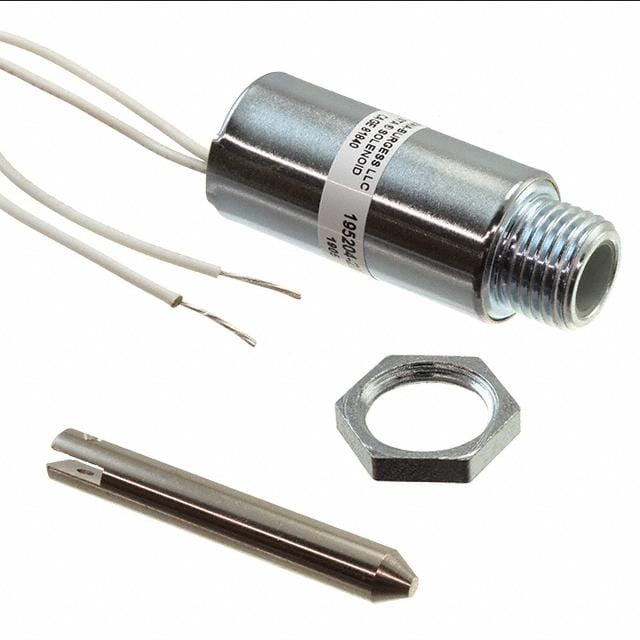

TUBULAR SOLENOID STA PULL 3/4 X

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleIntermittent
Voltage - Rated12VDC
Stroke Length0.625" (15.88mm)
Power (Watts)27.3 W
DC Resistance (DCR)5.3Ohm
Bushing Thread9/16-18 UNF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.750" Dia x 1.500" L (19.05mm x 38.10mm)
Diameter - Shaft0.308" (7.82mm)
Shaft DetailClevis
TT-DKEY-2024-1075-ND
in stockINR 8755.2
Ledex Dormeyer Saia, a Division of Johnson Electric
1 1
Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1075-ND

Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1075-ND

Sku: TT-DKEY-2024-1075-ND
₹8,755.2


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

TUBULAR SOLENOID STA PULL 3/4 X

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleIntermittent
Voltage - Rated12VDC
Stroke Length0.625" (15.88mm)
Power (Watts)27.3 W
DC Resistance (DCR)5.3Ohm
Bushing Thread9/16-18 UNF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.750" Dia x 1.500" L (19.05mm x 38.10mm)
Diameter - Shaft0.308" (7.82mm)
Shaft DetailClevis
