67a70cdce22534003e82ef78 Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1067-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67a70cdee22534003e82ef7b/195200-236.jpg

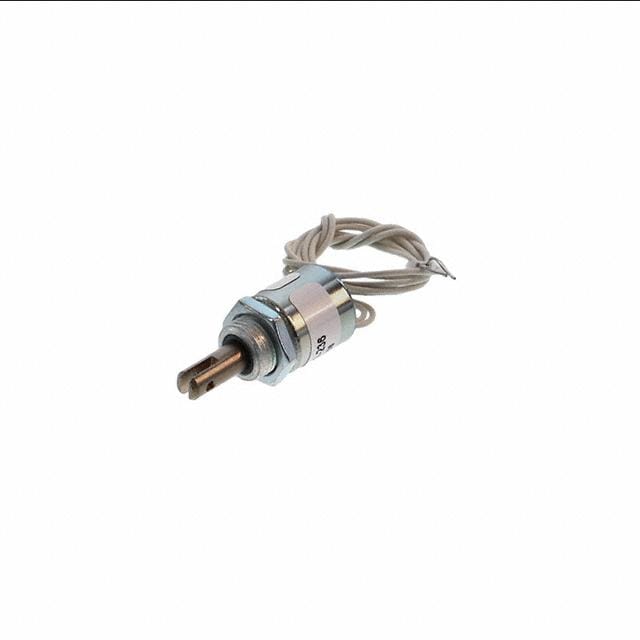

TUBULAR SOLENOID STA PULL 1/2 X

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated10VDC
Stroke Length0.100" (2.54mm)
Power (Watts)3 W
DC Resistance (DCR)29.1Ohm
Bushing Thread3/8-32 UNEF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.500" Dia x 0.500" L (12.70mm x 12.70mm)
Diameter - Shaft0.185" (4.70mm)
Shaft DetailClevis
TT-DKEY-2024-1067-ND
in stockINR 6197.76
Ledex Dormeyer Saia, a Division of Johnson Electric
1 1
Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1067-ND

Ledex Dormeyer Saia, a Division of Johnson Electric 2024-1067-ND

Sku: TT-DKEY-2024-1067-ND
₹6,197.76


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

TUBULAR SOLENOID STA PULL 1/2 X

Product Attributes:

SeriesSTA
Product StatusActive
TechnologyElectromechanical
TypeClosed Frame (Pull), Tubular
Duty CycleContinuous
Voltage - Rated10VDC
Stroke Length0.100" (2.54mm)
Power (Watts)3 W
DC Resistance (DCR)29.1Ohm
Bushing Thread3/8-32 UNEF
Mounting TypePanel Mount
Termination StyleWire Leads
Size / Dimension0.500" Dia x 0.500" L (12.70mm x 12.70mm)
Diameter - Shaft0.185" (4.70mm)
Shaft DetailClevis
