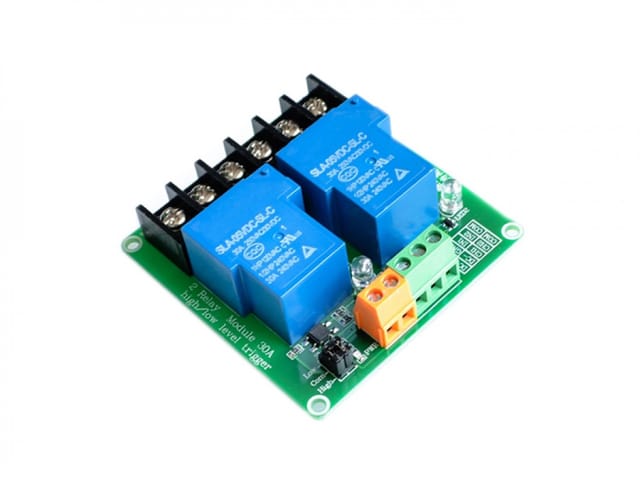

61792f09d920f2ba568b6348 2 Relay Module 30A https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/61792f018dc991b9c8198184/webp/2-relay-module-30a.jpg

Description:

This is a 2 channels Relay module, which can able to control various appliances, and other equipment with a BIG current for 30A (250VAC/30VDC). It can be controlled directly by microcontroller: Raspberry Pi, Arduino, AVR, PIC, DSP, ARM, or TTL logic. For control of module need power 5V and logic operation 3.3V/5V. To isolate the microcontroller from the relay, we added an optocoupler. Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay. This solution saves your microcontroller from a high voltage for VAC/VDC.

Features:

  • Working Voltage: DC5V
  • Max Control Capacity:30A@250VAC or 30A@30VDC
  • Active Level: High or LOW(Set by 2x2 header)

Package List:

  • 1 x 2 Relay Module 30A

TT-MF-MAR5302RM
in stockINR 881.6
Makerfabs
1 1
2 Relay Module 30A

2 Relay Module 30A

Sku: TT-MF-MAR5302RM
₹881.6


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

This is a 2 channels Relay module, which can able to control various appliances, and other equipment with a BIG current for 30A (250VAC/30VDC). It can be controlled directly by microcontroller: Raspberry Pi, Arduino, AVR, PIC, DSP, ARM, or TTL logic. For control of module need power 5V and logic operation 3.3V/5V. To isolate the microcontroller from the relay, we added an optocoupler. Now with this configuration, the microcontroller doesn’t have any physical connection with the relay, it just uses the LED light of the Optocoupler IC to activate the relay. This solution saves your microcontroller from a high voltage for VAC/VDC.

Features:

  • Working Voltage: DC5V
  • Max Control Capacity:30A@250VAC or 30A@30VDC
  • Active Level: High or LOW(Set by 2x2 header)

Package List:

  • 1 x 2 Relay Module 30A
