6411833285c2dd8633a8efff QT Brightek (QTB) 1516-1282-2-ND,1516-1282-1-ND,1516-1282-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6411833385c2dd8633a8f016/qblp677r-rgb.jpg

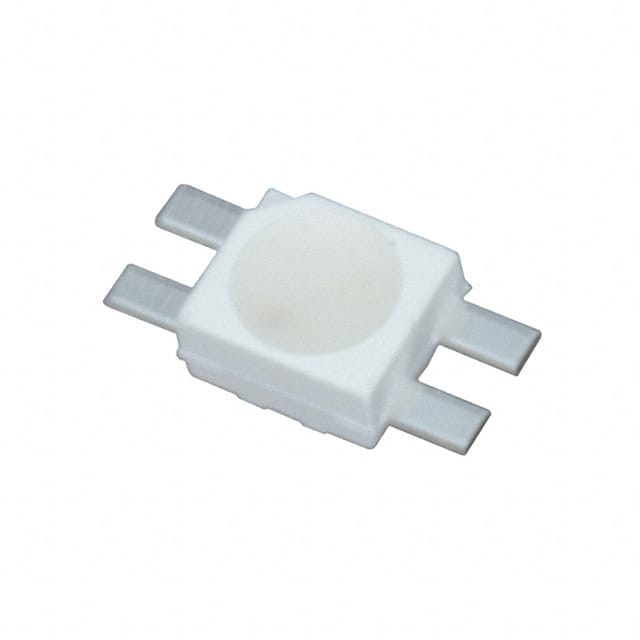

LED RGB DIFF 4PLCC SMD BOTTOM

Product Attributes:

Series QBLP677R
Product Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 700mcd Red, 2300mcd Green, 460mcd Blue
Lens Style Round with Flat Top
Lens Size 2.42mm Dia
Voltage - Forward (Vf) (Typ) 2V Red, 3.1V Green, 3.1V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 620nm Red, 525nm Green, 470nm Blue
Wavelength - Peak -
Features -
Package / Case 4-SMD, Flat Leads
Supplier Device Package 4-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 1.95mm
TT-DKEY-1516-1282-2-ND,1516-1282-1-ND,1516-1282-6-ND
in stock INR 142.29
QT Brightek (QTB)
1 1

QT Brightek (QTB) 1516-1282-2-ND,1516-1282-1-ND,1516-1282-6-ND

Sku: TT-DKEY-1516-1282-2-ND,1516-1282-1-ND,1516-1282-6-ND
₹142.29


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED RGB DIFF 4PLCC SMD BOTTOM

Product Attributes:

Series QBLP677R
Product Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 700mcd Red, 2300mcd Green, 460mcd Blue
Lens Style Round with Flat Top
Lens Size 2.42mm Dia
Voltage - Forward (Vf) (Typ) 2V Red, 3.1V Green, 3.1V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 620nm Red, 525nm Green, 470nm Blue
Wavelength - Peak -
Features -
Package / Case 4-SMD, Flat Leads
Supplier Device Package 4-PLCC
Size / Dimension 3.20mm L x 2.80mm W
Height (Max) 1.95mm
