Samsung Semiconductor, Inc. 1510-2354-2-ND,1510-2354-1-ND,1510-2354-6-ND
Sku: TT-DKEY-1510-2354-2-ND,1510-2354-1-ND,1510-2354-6-ND
₹55.8
Features
- Shipping in 10-12 Working Days
Description of product

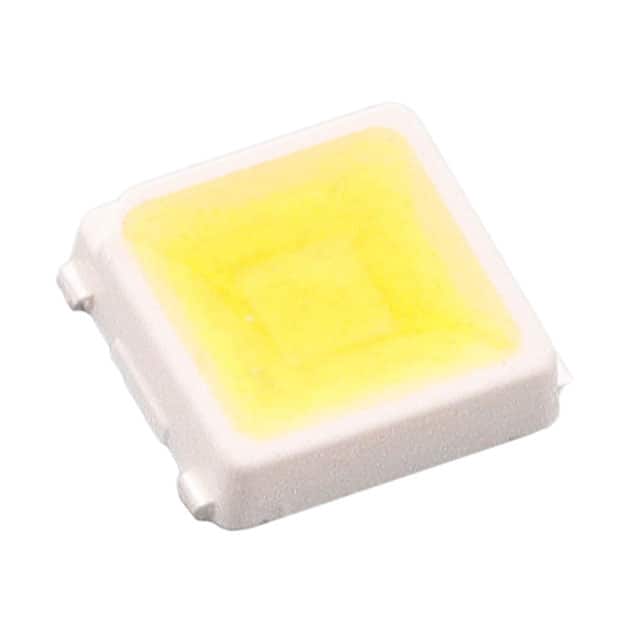

LED LM101B CHIP SCALE
Product Attributes:
| Series | LM101B |
| Product Status | Active |
| Color | White, Neutral |
| CCT (K) | 4000K 5-Step MacAdam Ellipse |
| Flux @ 85°C, Current - Test | - |
| Flux @ 25°C, Current - Test | 37lm (Typ) |
| Current - Test | 65mA |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Lumens/Watt @ Current - Test | 203 lm/W |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 350mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.067" L x 0.067" W (1.70mm x 1.70mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
