6412b03bb72b56a8d427d29c CreeLED, Inc. 2138-JB5630AWT-P-H40GA0000-NZ000001TR-ND,2138-JB5630AWT-P-H40GA0000-NZ000001CT-ND,2138-JB5630AWT-P-H40GA0000-NZ000001DKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6412b03cb72b56a8d427d2ad/jb5630awt-p-h40ga0000-nz000001.jpg

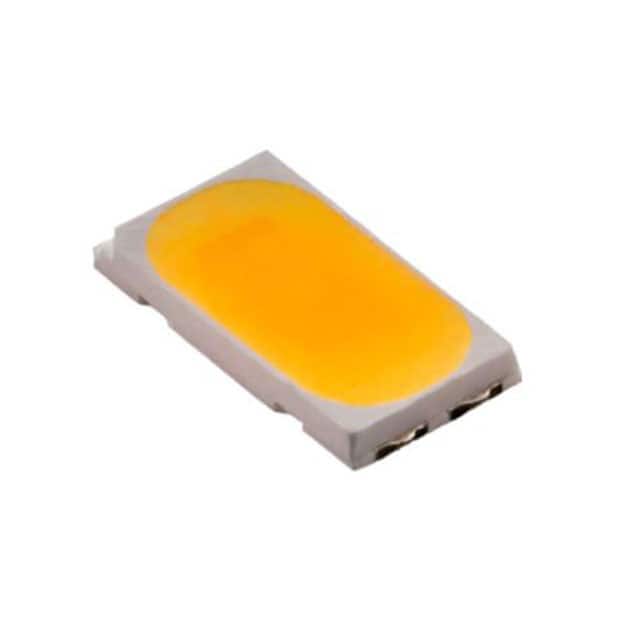

LED WHITE 4000K JB5630 3V

Product Attributes:

SeriesJ
Product StatusActive
ColorWhite, Neutral
CCT (K)4000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test34lm (Typ)
Flux @ 25°C, Current - Test36lm (Typ)
Current - Test65mA
Voltage - Forward (Vf) (Typ)2.71V
Lumens/Watt @ Current - Test204 lm/W
CRI (Color Rendering Index)80
Current - Max240mA
Viewing Angle120°
Mounting TypeSurface Mount
Package / Case2212 (5630 Metric)
Supplier Device Package2-PLCC
Size / Dimension0.220" L x 0.118" W (5.60mm x 3.00mm)
Height - Seated (Max)0.031" (0.80mm)
TT-DKEY-2138-JB5630AWT-P-H40GA0000-NZ000001TR-ND,2138-JB5630AWT-P-H40GA0000-NZ000001CT-ND,2138-JB5630AWT-P-H40GA0000-NZ000001DKR-ND
in stockINR 15.344999999999999
CreeLED, Inc.
1 1
CreeLED, Inc. 2138-JB5630AWT-P-H40GA0000-NZ000001TR-ND,2138-JB5630AWT-P-H40GA0000-NZ000001CT-ND,2138-JB5630AWT-P-H40GA0000-NZ000001DKR-ND

CreeLED, Inc. 2138-JB5630AWT-P-H40GA0000-NZ000001TR-ND,2138-JB5630AWT-P-H40GA0000-NZ000001CT-ND,2138-JB5630AWT-P-H40GA0000-NZ000001DKR-ND

Sku: TT-DKEY-2138-JB5630AWT-P-H40GA0000-NZ000001TR-ND,2138-JB5630AWT-P-H40GA0000-NZ000001CT-ND,2138-JB5630AWT-P-H40GA0000-NZ000001DKR-ND
₹15.34


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED WHITE 4000K JB5630 3V

Product Attributes:

SeriesJ
Product StatusActive
ColorWhite, Neutral
CCT (K)4000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test34lm (Typ)
Flux @ 25°C, Current - Test36lm (Typ)
Current - Test65mA
Voltage - Forward (Vf) (Typ)2.71V
Lumens/Watt @ Current - Test204 lm/W
CRI (Color Rendering Index)80
Current - Max240mA
Viewing Angle120°
Mounting TypeSurface Mount
Package / Case2212 (5630 Metric)
Supplier Device Package2-PLCC
Size / Dimension0.220" L x 0.118" W (5.60mm x 3.00mm)
Height - Seated (Max)0.031" (0.80mm)
