Lumileds 1416-1986-2-ND,1416-1986-1-ND,1416-1986-6-ND
Sku: TT-DKEY-1416-1986-2-ND,1416-1986-1-ND,1416-1986-6-ND
₹55.8
Features
- Shipping in 10-12 Working Days
Description of product

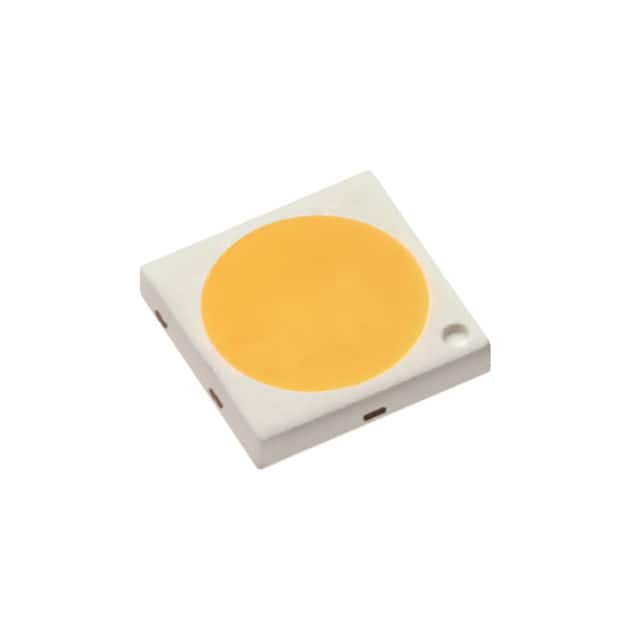

WHITE 3030 HV 48V 80CRI 2700K
Product Attributes:
| Series | LUXEON 3030 HV |
| Product Status | Active |
| Color | White, Warm |
| CCT (K) | 2700K |
| Flux @ 85°C, Current - Test | - |
| Flux @ 25°C, Current - Test | 107lm (Typ) |
| Current - Test | 17mA |
| Voltage - Forward (Vf) (Typ) | 48V |
| Lumens/Watt @ Current - Test | 131 lm/W |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 30mA |
| Viewing Angle | 116° |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 3030 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.024" (0.62mm) |
