Everlight Electronics Co Ltd 1080-1530-2-ND,1080-1530-1-ND,1080-1530-6-ND
Sku: TT-DKEY-1080-1530-2-ND,1080-1530-1-ND,1080-1530-6-ND
₹83.7
Features
- Shipping in 10-12 Working Days
Description of product

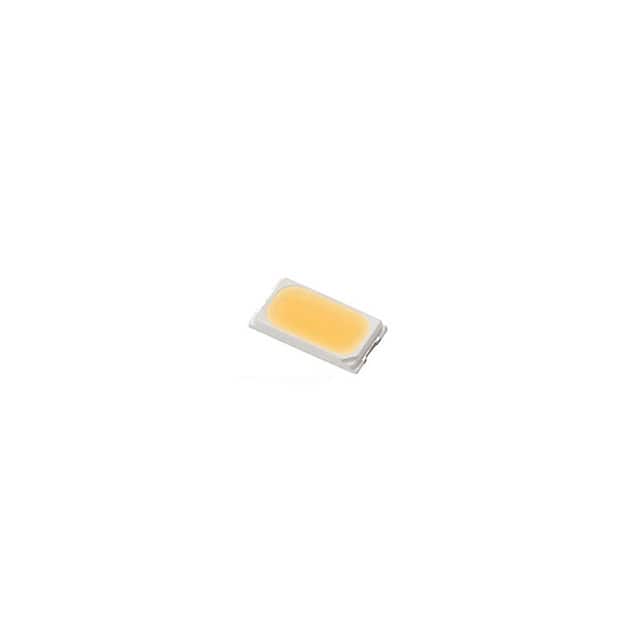

5630 KK7D COOL WHITE LED 5000K 8
Product Attributes:
| Series | 62-227ET |
| Product Status | Active |
| Color | White, Cool |
| CCT (K) | 5000K |
| Flux @ 85°C, Current - Test | - |
| Flux @ 25°C, Current - Test | 41lm (Typ) |
| Current - Test | 65mA |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Lumens/Watt @ Current - Test | 229 lm/W |
| CRI (Color Rendering Index) | 80 |
| Current - Max | 180mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 2211 (5630 Metric) |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 0.220" L x 0.118" W (5.60mm x 3.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
