5b98d03934fc9b1269e0a68c Z-turn IO Cape https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98d03934fc9b1269e0a68c/images/5b98d03934fc9b1269e0a68d/5b98cfd85fb5f611dec0e4bc/webp/5b98cfd85fb5f611dec0e4bc.jpg

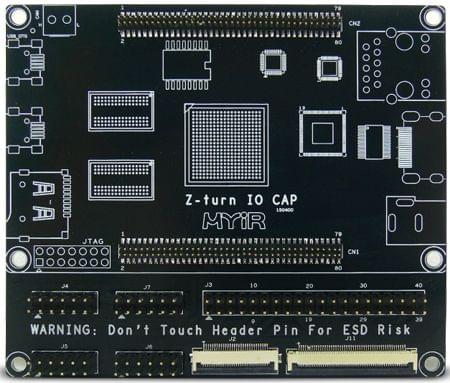

The Z-turn IO Cape is an IO extension board designed specially for MYIR's Z-turn Board which is a Xilinx Zynq-based Single Board Computer. User can bring out many peripherals and signals like ADC, GPIO, LCD and camera interfaces to help you explore more functions from the Z-turn Board.

Specification

I/O

I/O Function, reused with LCD pins, it can be used as GPIO if don't use LCD

 LCD / Touch screen


Can connect with MYIR's 4.3-inch and 7-inch LCD Modules



Camera

J2 interface

Pmod

3 x Pmod interfaces, can be used for connecting with some common Pmod modules

ADC

1 x ADC (can be differential signals), extended 4 IOs of PS unit

Dimensions

102mm x 88mm

Power input

5V/1A, 3.3V/1A

PS IO: 3.3V

PL IO: 3.3V



ADC input


0~1.8V

TT-MT-026
in stockINR 5442.16
GENERIC
1 1
Z-turn IO Cape

Z-turn IO Cape

Sku: TT-MT-026
₹5,442.16


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98d03934fc9b1269e0a68c/images/5b98d03934fc9b1269e0a68d/5b98cfd85fb5f611dec0e4bc/5b98cfd85fb5f611dec0e4bc.jpg

Description of product

The Z-turn IO Cape is an IO extension board designed specially for MYIR's Z-turn Board which is a Xilinx Zynq-based Single Board Computer. User can bring out many peripherals and signals like ADC, GPIO, LCD and camera interfaces to help you explore more functions from the Z-turn Board.

Specification

I/O

I/O Function, reused with LCD pins, it can be used as GPIO if don't use LCD

 LCD / Touch screen


Can connect with MYIR's 4.3-inch and 7-inch LCD Modules



Camera

J2 interface

Pmod

3 x Pmod interfaces, can be used for connecting with some common Pmod modules

ADC

1 x ADC (can be differential signals), extended 4 IOs of PS unit

Dimensions

102mm x 88mm

Power input

5V/1A, 3.3V/1A

PS IO: 3.3V

PL IO: 3.3V



ADC input


0~1.8V
