Description

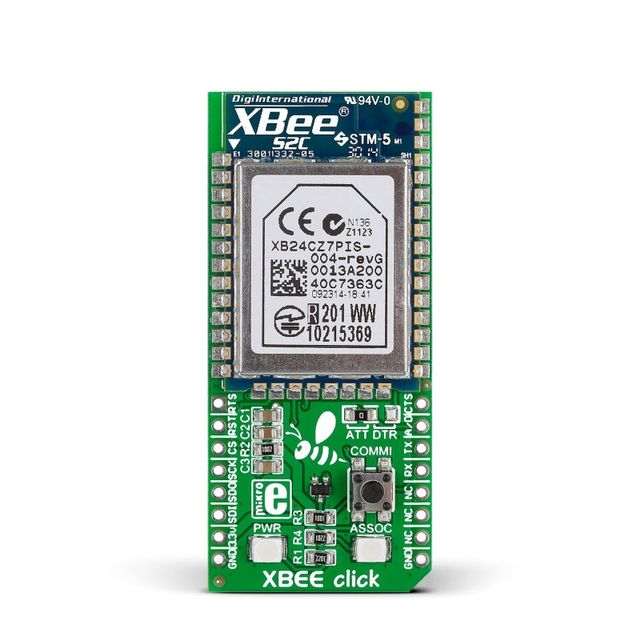

XBee click carries the Xbee® and Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International. The module provides wireless connectivity to end-point devices in ZigBee mesh networks. The module has a wireless range of up to 60 meters indoors, or up to 1200m in outdoor line-of-sight applications. The RF data rate is up to 250,000 Kbps. The board can communicate with the target MCU either through the mikroBUS UART interface (TX, RX, RTS i CTS), or SPI (MISO, MOSI, SCK, CS). Additional functionality is provided by Reset, and ATTN-DTR pins. To simplify deployment, the click board features a pushbutton to issue simple configuration commands with subsequent button presses. Uses 3.3V power supply only.
Specification
Type | ZigBee |
Applications | ZigBee is a low-power networking solution for applications that don’t require high data rates, which can be anything from smart homes and building automation, to industrial control |
On-board modules | Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International |
Key Features | Indoor range 60 meters; line-of-sight range up to 1.2km. 2.4-2.5 GHz frequency band, RF data rate up to 250 Kbps |
Key Benefits | Low power consumption |
Interface | SPI,GPIO,UART |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | L (57.15 x 25.4 mm) |
Description
XBee click carries the Xbee® and Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International. The module provides wireless connectivity to end-point devices in ZigBee mesh networks. The module has a wireless range of up to 60 meters indoors, or up to 1200m in outdoor line-of-sight applications. The RF data rate is up to 250,000 Kbps. The board can communicate with the target MCU either through the mikroBUS UART interface (TX, RX, RTS i CTS), or SPI (MISO, MOSI, SCK, CS). Additional functionality is provided by Reset, and ATTN-DTR pins. To simplify deployment, the click board features a pushbutton to issue simple configuration commands with subsequent button presses. Uses 3.3V power supply only.
Specification
Type | ZigBee |
Applications | ZigBee is a low-power networking solution for applications that don’t require high data rates, which can be anything from smart homes and building automation, to industrial control |
On-board modules | Zigbee-compliant XB24CZ7PIS-004 module with a PCB antenna from Digi International |
Key Features | Indoor range 60 meters; line-of-sight range up to 1.2km. 2.4-2.5 GHz frequency band, RF data rate up to 250 Kbps |
Key Benefits | Low power consumption |
Interface | SPI,GPIO,UART |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | L (57.15 x 25.4 mm) |
