Molex WM9405-ND
Sku: TT-DKEY-WM9405-ND
₹865.07
Features
- Shipping in 10-12 Working Days
Description of product

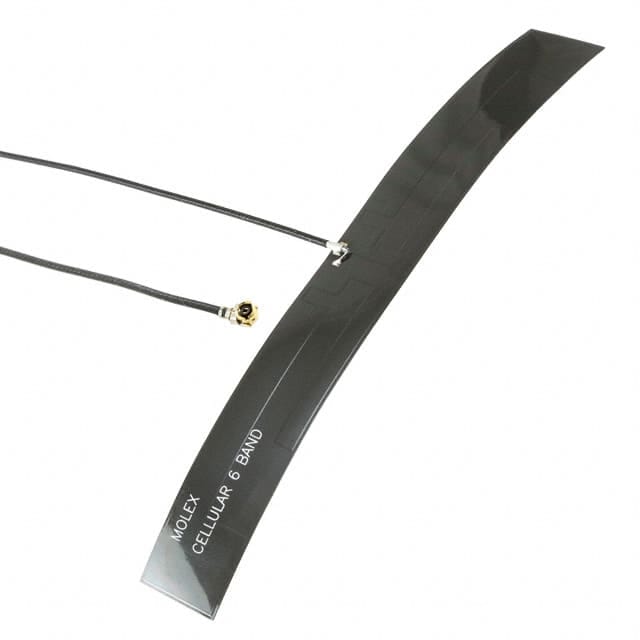

RF ANT 850/900MHZ FLAT 100MM
Product Attributes:
| Series | 105263 |
| Part Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz |
| Frequency Range | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -6.8dB, -7dB, -7.5dB, -10dB, -10.5dB |
| Gain | 2dBi, 2.2dBi, 2.3dBi, 3.1dBi |
| Power - Max | 2 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | GSM, LTE, UMTS |
