6129fc4aad57e16d3e67568b Molex WM22048-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6129fc4bad57e16d3e6756cd/2065600200.jpg

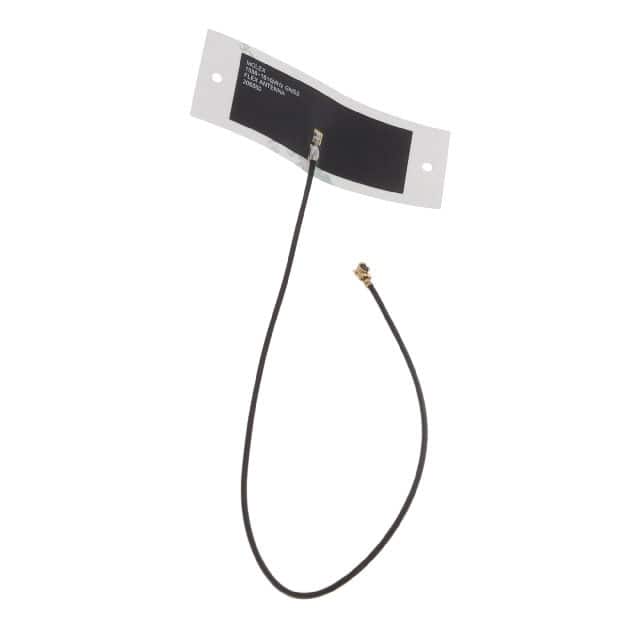

RF ANT 1.561/1.575GHZ FLAT 200MM

Product Attributes:

Series	206560
Part Status	Active
RF Family/Standard	Navigation
Frequency Group	Wide Band
Frequency (Center/Band)	1.561GHz, 1.575GHz, 1.602GHz
Frequency Range	1.558GHz ~ 1.61GHz
Antenna Type	Flat Patch
Number of Bands	3
VSWR	-
Return Loss	-8dB
Gain	0.7dBi, 0.8dBi, 1.1dBi
Power - Max	-
Features	Cable - 200mm
Termination	U.FL (UMCC), IPEX MHF1
Ingress Protection	-
Mounting Type	Adhesive
Height (Max)	0.004" (0.10mm)
Applications	Beidou, GLONASS, GNSS, GPS

DataSheet:

Product DataSheet

TT-DKEY-WM22048-ND

in stockINR

Molex

1 1

Email ID already exists!

Your Current password is incorrect

Password Updated Successfully

Thanks for your Feedback

Home
RF AND WIRELESS
Molex WM22048-ND

Molex WM22048-ND

Sku: TT-DKEY-WM22048-ND
