6aa249c63a2972c7dd99fb37 WiFiScope WS5-540 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6aa247c531d64472c1c4bce6/wifiscope_ws5.webp

Key specifications

Acquisition system

  • 8, 12, 14, 16 bit resolution, 0.25 % DC vertical accuracy, 0.1 % typical
  • Up to 500 MSa/s sampling, 250 MHz bandwidth
  • Up to 32 MSamples memory per channel
  • 20 MSa/s, 14 bit continuous streaming
  • 1 ppm time base accuracy

Arbitrary Waveform Generator

  • 1 µHz up to 40 MHz sine, square, triangular, pulse and arbitrary waveforms
  • -12 to 12 V output (24 Vpp)
  • Up to 64 MSamples, 240 MSa/s, 14 bit arbitrary waveforms
  • Spurious (non harmonic) < -85 dB
  • 8 ns rise and fall time

Documentation:

Datasheet

Manual

Specification:

Acquisition system
Number of input channels 2 analog
CH1, CH2 BNC, female
Type Single-ended
Resolution User selectable in software
Native 8, 12, 14 bit
Enhanced 16 bit
DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB
Ranges (Full scale) ± 200 mV
± 2 V
± 20 V
Coupling AC/DC
Noise 300 µVrms (200 mV range, 12 bit, 50 MSa/s)
85 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
Impedance 1 MΩ / 25 pF ± 1 %
Maximum voltage 200 V (DC + AC peak < 10 kHz)
Maximum voltage 1:10 probe 600 V (DC + AC peak < 10 kHz)
Bandwidth (-3 dB) at 75 % of full scale input
Ch1 250 MHz
Ch2 250 MHz (serial number < 41382 : 100 MHz)
AC coupling cut off frequency (-3 dB) ± 1.5 Hz
SureConnect Optionally available (option S)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Resistance measurement Optionally available (option S)
Ranges (Full scale) 100 Ω
1 kΩ
10 kΩ
100 kΩ
1 MΩ
Accuracy 1 % of full scale
Response time (to 95 %) < 10 µs
Maximum sampling rate WS5-540
8/12 bit, measuring one channel 500 MSa/s
8/12 bit, measuring two channels 200 MSa/s
14 bit 100 MSa/s
16 bit 6.25 MSa/s
Maximum streaming rate 1 2 WS5-540
8 bit, measuring one channel 40 MSa/s
8 bit, measuring two channels 20 MSa/s
12/14 bit, measuring one channel 20 MSa/s
12/14 bit, measuring two channels 10 MSa/s
16 bit 6.25 MSa/s
  1. On some computers, the highest streaming rates may not be available, due to computer restrictions.
  2. When connected through WiFi, the maximum streaming rate is limited, and depends on the quality of the WiFi network.
Memory Standard model XM option
Measuring one channel 256 KSamples per channel 64 MSamples per channel
Measuring two channels 128 KSamples per channel 32 MSamples per channel
Sampling clock source
Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0 °C to 55 °C
Time base aging ± 1 ppm/year
External LVDS, on auxiliary connectors
Input frequency 10 MHz ± 1 %
16.369 MHz ± 1 %
Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, OR, digital external
Generator start, Generator new period, Generator stop
Trigger modes Rising edge, Falling edge, Any edge
Inside window, Outside window, Enter window, Exit window
Pulse width
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.006 % (14, 16 bits) / 0.025 % (12 bits)
Pre trigger 0 to selected record length, 1 sample resolution
Post trigger 0 to selected record length, 1 sample resolution
Trigger hold-off 0 to 63 MSamples, 1 sample resolution
Trigger delay 0 to 16 GSamples, 1 sample resolution
Segmented trigger Available on models with extended memory option XM, available via libtiepie-hw SDK
Segmented trigger is only available on a single instrument, not on a combined instrument
Maximum number of segments 1024
Minimum segment length 1 sample
Maximum segment length 32 M / number of segments
64 M / number of segments measuring one channel
Trigger rearm time Sample frequency dependent, < 700 ns on highest sample frequency
Digital external trigger
Input Extension connector pins 1, 2 and 3
Range 0 to 2.5 V (TTL)
Coupling DC
Jitter Depending on source and sample frequency
Source = channel ≤ 1 sample
Source = external or generator
Sample frequency = 500 MSa/s ≤ 8 samples
Sample frequency < 500 MSa/s ≤ 4 samples
Sample frequency ≤ 100 MSa/s ≤ 1 sample

Arbitrary Waveform Generator (independent from acquisition system)
Waveforms
Standard Sine, square, triangle, pulse, noise, DC
Signal characteristics
Sine WS5-540
Frequency range 1 µHz to 40 MHz
Amplitude flatness Relative to 1 kHz
< 100 kHz ± 0.1 dB
< 5 MHz ± 0.15 dB
< 20 MHz ± 0.3 dB (Amplitude ≤ 11 V (22 Vpp))
< 30 MHz ± 0.4 dB (Amplitude ≤ 9 V (18 Vpp))
< 40 MHz ± 1 dB (Amplitude ≤ 7.5 V (15 Vpp))
Spurious (non harmonic)
< 100 kHz -75 dBc
100 kHz to 1 MHz -70 dBc
1 MHz to 10 MHz -60 dBc
10 MHz to 15 MHz -55 dBc
15 MHz to 20 MHz -45 dBc
20 MHz to 30 MHz -35 dBc
30 MHz to 40 MHz -30 dBc
Square WS5-540
Frequency range 1 µHz to 30 MHz 1
Rise/fall time < 8 ns
Overshoot < 1 %
Variable duty cycle 0.01 % to 99.99 %
Asymmetry 0 % of period + 5 ns (@ 50 % Duty cycle)
Jitter (RMS) < 50 ps
Triangle WS5-540
Frequency range 1 µHz to 30 MHz 1
Nonlinearity (of peak output) < 0.01 %
Symmetry 0 % - 100 %, 0.1 % steps
Pulse
Period 100 ns to 1000 s
Pulse width 15 ns to 1000 s
Variable edge time 8 ns to 1 s
Overshoot < 1 %
Jitter (rms) < 50 ps
Noise
Bandwidth (typical) 30 MHz
Arbitrary WS5-540
Frequency range 0.4 nHz to 30 MHz
Maximum sample rate 240 MSa/s
Length
Standard model 1 to 256 KiSamples
XM option 1 to 64 MiSamples
Rise/Fall time < 8 ns
Nonlinearity (of peak output) < 0.01 %
Settling time < 8 ns to 10 % final value
Jitter (RMS) < 50 ps
  1. Above 30 MHz not gespecified.
Common characteristics
Number of output channels 1 analog, BNC, female
DAC resolution 14 bit
Output range At open circuit
frequency ≤ 10 MHz -12 to +12 V (24 Vpp)
frequency ≤ 20 MHz -11 to +11 V (22 Vpp)
frequency ≤ 30 MHz -9 to +9 V (18 Vpp)
frequency ≤ 40 MHz -7.5 to +7.5 V (15 Vpp)
Amplitude
Ranges (at open circuit) 0.12 V (0.24 Vpp)
1.2 V (2.4 Vpp)
12 V (24 Vpp)
Resolution 12 bit
Accuracy 0.4 % of range
DC offset
Range -12 to +12 V at open circuit
Resolution 12 bit
Accuracy 0.4 % of range
Noise level
0.12 V range 900 µVRMS
1.2 V range 1.3 mVRMS
12 V range 1.5 mVRMS
Coupling DC
Impedance 50 Ω
Overload protection Output turns off automatically when overload is applied. Instrument will tolerate a short circuit to ground indefinitely.
Burst
Waveforms Sine, square, triangle, noise, arbitrary
Count 1 to 65535
Trigger Software, external
Sweep Available on models with extended memory option XM
Waveforms Sine, square, triangle
Type Linear, logarithmic
Direction Up, down
Trigger Software, external
System characteristics
System Constant Data Size
Memory
Standard model 256 KiSamples
Option XM 64 MiSamples
Operating modes Continuous, triggered, gated
Maximum sample rate WS5-540
  240 MSa/s
Sampling source Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0 °C to +55 °C
Time base aging ± 1 ppm/year

Multi-instrument synchronization
Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
Maximum number of instruments Limited by number of available USB ports
Synchronization accuracy 0 ppm
CMI interface 2x, CMI 1, CMI 2
Required coupling cable TP-C50H CMI Coupling cable
Maximum coupling cable length 50 cm
Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
Maximum number of instruments No limitation
Required coupling module WCMI - 8, WCMI - 9
Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
2 x "5" ≤ ± 2 samples ≤ ± 2 µs
"5" and "6"
Trigger source "5" ≤ ± 2 samples ≤ ± 2 µs
Trigger source "6" ≤ ± 8 samples ≤ ± 8 µs
2 x "6" ≤ ± 8 samples ≤ ± 8 µs
  1. "5" = WiFiScope WS5 or Handyscope HS5.
    "6" = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

Interface
Interface
USB USB 2.0 High Speed (480 Mbit/s);
(USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Network
LAN 1 Gbps
WiFi 802.11
Network port (TCPIP and UDP) 5450 (IANA assigned)

Power Requirements
Power From USB, external input or built-in battery
Consumption 12 VDC 2 A max
External power From power adapter
Internal battery Li-ion
Capacity 7000 mAh, 3.7 V
Weight 160 g

Physical
Instrument
Height 44 mm (1,7 inch)
Length 187 mm (7.4 inch)
Width 215 mm (8.5 inch)
Weight 751 g (26.5 ounce)
USB cord length 1.5 m (59 inch)

I/O connectors
Channel 1, 2 BNC, female
AWG BNC, female
USB USB 3 type B Super Speed socket
LAN RJ45 socket
Extension connector D-sub 9 pins female
Power 3.5 mm power socket
CMI connectors 2 x HDMI type C socket

System requirements
PC I/O connection USB 1.1, USB 2.0 or newer
RJ45
WiFi
Operating system Windows 10 / 11, 64 bits
Linux (via own developed software using the libtiepie-hw SDK)

Environmental conditions
  Ambient temperature Relative humidity
Operating (with charging) 15 °C to 30 °C for rated accuracy
(10 °C to 35 °C without specifications)		 10 % to 90 %, non condensing
Operating (without charging) 15 °C to 35 °C for rated accuracy
(10 °C to 40 °C without specifications)		 10 % to 90 %, non condensing
Only charging 0 °C to 35 °C 10 % to 90 %, non condensing
Storage 0 °C to 35 °C 5 % to 95 %, non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes
EN 55011:2009/A1:2010 Yes
EN 55022:2006/A1:2007 Yes
EN 61000-6-1:2007 Yes
EN 61000-6-3:2007 Yes

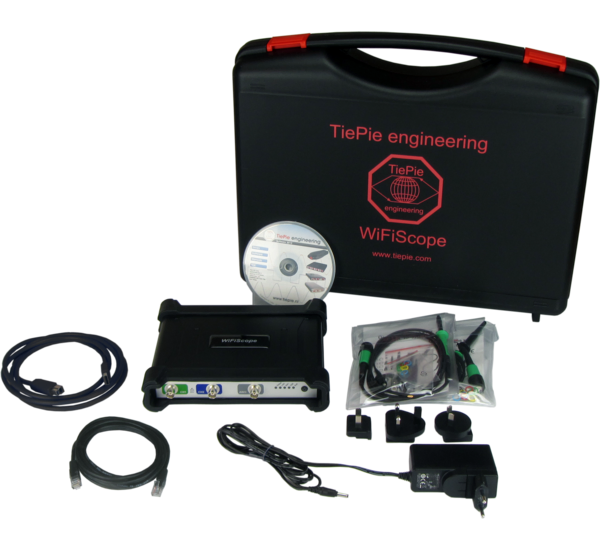

Package contents
Instrument WiFiScope WS5
Oscilloscope probes 2 x Oscilloscope Probe 1:1-1:10 - HP-3250I
Accessories Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user's manuals
color printed and digital, via website
TT-TP-WiFiScope WS5-540
in stock INR
1 1
WiFiScope WS5-540

WiFiScope WS5-540

Sku: TT-TP-WiFiScope WS5-540
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech

Description of product

Key specifications

Acquisition system

  • 8, 12, 14, 16 bit resolution, 0.25 % DC vertical accuracy, 0.1 % typical
  • Up to 500 MSa/s sampling, 250 MHz bandwidth
  • Up to 32 MSamples memory per channel
  • 20 MSa/s, 14 bit continuous streaming
  • 1 ppm time base accuracy

Arbitrary Waveform Generator

  • 1 µHz up to 40 MHz sine, square, triangular, pulse and arbitrary waveforms
  • -12 to 12 V output (24 Vpp)
  • Up to 64 MSamples, 240 MSa/s, 14 bit arbitrary waveforms
  • Spurious (non harmonic) < -85 dB
  • 8 ns rise and fall time

Documentation:

Datasheet

Manual

Specification:

Acquisition system
Number of input channels 2 analog
CH1, CH2 BNC, female
Type Single-ended
Resolution User selectable in software
Native 8, 12, 14 bit
Enhanced 16 bit
DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB
Ranges (Full scale) ± 200 mV
± 2 V
± 20 V
Coupling AC/DC
Noise 300 µVrms (200 mV range, 12 bit, 50 MSa/s)
85 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
Impedance 1 MΩ / 25 pF ± 1 %
Maximum voltage 200 V (DC + AC peak < 10 kHz)
Maximum voltage 1:10 probe 600 V (DC + AC peak < 10 kHz)
Bandwidth (-3 dB) at 75 % of full scale input
Ch1 250 MHz
Ch2 250 MHz (serial number < 41382 : 100 MHz)
AC coupling cut off frequency (-3 dB) ± 1.5 Hz
SureConnect Optionally available (option S)
Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
Resistance measurement Optionally available (option S)
Ranges (Full scale) 100 Ω
1 kΩ
10 kΩ
100 kΩ
1 MΩ
Accuracy 1 % of full scale
Response time (to 95 %) < 10 µs
Maximum sampling rate WS5-540
8/12 bit, measuring one channel 500 MSa/s
8/12 bit, measuring two channels 200 MSa/s
14 bit 100 MSa/s
16 bit 6.25 MSa/s
Maximum streaming rate 1 2 WS5-540
8 bit, measuring one channel 40 MSa/s
8 bit, measuring two channels 20 MSa/s
12/14 bit, measuring one channel 20 MSa/s
12/14 bit, measuring two channels 10 MSa/s
16 bit 6.25 MSa/s
  1. On some computers, the highest streaming rates may not be available, due to computer restrictions.
  2. When connected through WiFi, the maximum streaming rate is limited, and depends on the quality of the WiFi network.
Memory Standard model XM option
Measuring one channel 256 KSamples per channel 64 MSamples per channel
Measuring two channels 128 KSamples per channel 32 MSamples per channel
Sampling clock source
Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0 °C to 55 °C
Time base aging ± 1 ppm/year
External LVDS, on auxiliary connectors
Input frequency 10 MHz ± 1 %
16.369 MHz ± 1 %
Trigger Only available in scope/block mode, not in streaming mode
System Digital, 2 levels
Source CH1, CH2, OR, digital external
Generator start, Generator new period, Generator stop
Trigger modes Rising edge, Falling edge, Any edge
Inside window, Outside window, Enter window, Exit window
Pulse width
Level adjustment 0 to 100 % of full scale
Hysteresis adjustment 0 to 100 % of full scale
Resolution 0.006 % (14, 16 bits) / 0.025 % (12 bits)
Pre trigger 0 to selected record length, 1 sample resolution
Post trigger 0 to selected record length, 1 sample resolution
Trigger hold-off 0 to 63 MSamples, 1 sample resolution
Trigger delay 0 to 16 GSamples, 1 sample resolution
Segmented trigger Available on models with extended memory option XM, available via libtiepie-hw SDK
Segmented trigger is only available on a single instrument, not on a combined instrument
Maximum number of segments 1024
Minimum segment length 1 sample
Maximum segment length 32 M / number of segments
64 M / number of segments measuring one channel
Trigger rearm time Sample frequency dependent, < 700 ns on highest sample frequency
Digital external trigger
Input Extension connector pins 1, 2 and 3
Range 0 to 2.5 V (TTL)
Coupling DC
Jitter Depending on source and sample frequency
Source = channel ≤ 1 sample
Source = external or generator
Sample frequency = 500 MSa/s ≤ 8 samples
Sample frequency < 500 MSa/s ≤ 4 samples
Sample frequency ≤ 100 MSa/s ≤ 1 sample

Arbitrary Waveform Generator (independent from acquisition system)
Waveforms
Standard Sine, square, triangle, pulse, noise, DC
Signal characteristics
Sine WS5-540
Frequency range 1 µHz to 40 MHz
Amplitude flatness Relative to 1 kHz
< 100 kHz ± 0.1 dB
< 5 MHz ± 0.15 dB
< 20 MHz ± 0.3 dB (Amplitude ≤ 11 V (22 Vpp))
< 30 MHz ± 0.4 dB (Amplitude ≤ 9 V (18 Vpp))
< 40 MHz ± 1 dB (Amplitude ≤ 7.5 V (15 Vpp))
Spurious (non harmonic)
< 100 kHz -75 dBc
100 kHz to 1 MHz -70 dBc
1 MHz to 10 MHz -60 dBc
10 MHz to 15 MHz -55 dBc
15 MHz to 20 MHz -45 dBc
20 MHz to 30 MHz -35 dBc
30 MHz to 40 MHz -30 dBc
Square WS5-540
Frequency range 1 µHz to 30 MHz 1
Rise/fall time < 8 ns
Overshoot < 1 %
Variable duty cycle 0.01 % to 99.99 %
Asymmetry 0 % of period + 5 ns (@ 50 % Duty cycle)
Jitter (RMS) < 50 ps
Triangle WS5-540
Frequency range 1 µHz to 30 MHz 1
Nonlinearity (of peak output) < 0.01 %
Symmetry 0 % - 100 %, 0.1 % steps
Pulse
Period 100 ns to 1000 s
Pulse width 15 ns to 1000 s
Variable edge time 8 ns to 1 s
Overshoot < 1 %
Jitter (rms) < 50 ps
Noise
Bandwidth (typical) 30 MHz
Arbitrary WS5-540
Frequency range 0.4 nHz to 30 MHz
Maximum sample rate 240 MSa/s
Length
Standard model 1 to 256 KiSamples
XM option 1 to 64 MiSamples
Rise/Fall time < 8 ns
Nonlinearity (of peak output) < 0.01 %
Settling time < 8 ns to 10 % final value
Jitter (RMS) < 50 ps
  1. Above 30 MHz not gespecified.
Common characteristics
Number of output channels 1 analog, BNC, female
DAC resolution 14 bit
Output range At open circuit
frequency ≤ 10 MHz -12 to +12 V (24 Vpp)
frequency ≤ 20 MHz -11 to +11 V (22 Vpp)
frequency ≤ 30 MHz -9 to +9 V (18 Vpp)
frequency ≤ 40 MHz -7.5 to +7.5 V (15 Vpp)
Amplitude
Ranges (at open circuit) 0.12 V (0.24 Vpp)
1.2 V (2.4 Vpp)
12 V (24 Vpp)
Resolution 12 bit
Accuracy 0.4 % of range
DC offset
Range -12 to +12 V at open circuit
Resolution 12 bit
Accuracy 0.4 % of range
Noise level
0.12 V range 900 µVRMS
1.2 V range 1.3 mVRMS
12 V range 1.5 mVRMS
Coupling DC
Impedance 50 Ω
Overload protection Output turns off automatically when overload is applied. Instrument will tolerate a short circuit to ground indefinitely.
Burst
Waveforms Sine, square, triangle, noise, arbitrary
Count 1 to 65535
Trigger Software, external
Sweep Available on models with extended memory option XM
Waveforms Sine, square, triangle
Type Linear, logarithmic
Direction Up, down
Trigger Software, external
System characteristics
System Constant Data Size
Memory
Standard model 256 KiSamples
Option XM 64 MiSamples
Operating modes Continuous, triggered, gated
Maximum sample rate WS5-540
  240 MSa/s
Sampling source Internal TCXO
Accuracy ± 0.0001 %
Stability ± 1 ppm over 0 °C to +55 °C
Time base aging ± 1 ppm/year

Multi-instrument synchronization
Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
Maximum number of instruments Limited by number of available USB ports
Synchronization accuracy 0 ppm
CMI interface 2x, CMI 1, CMI 2
Required coupling cable TP-C50H CMI Coupling cable
Maximum coupling cable length 50 cm
Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
Maximum number of instruments No limitation
Required coupling module WCMI - 8, WCMI - 9
Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
2 x "5" ≤ ± 2 samples ≤ ± 2 µs
"5" and "6"
Trigger source "5" ≤ ± 2 samples ≤ ± 2 µs
Trigger source "6" ≤ ± 8 samples ≤ ± 8 µs
2 x "6" ≤ ± 8 samples ≤ ± 8 µs
  1. "5" = WiFiScope WS5 or Handyscope HS5.
    "6" = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

Interface
Interface
USB USB 2.0 High Speed (480 Mbit/s);
(USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)
Network
LAN 1 Gbps
WiFi 802.11
Network port (TCPIP and UDP) 5450 (IANA assigned)

Power Requirements
Power From USB, external input or built-in battery
Consumption 12 VDC 2 A max
External power From power adapter
Internal battery Li-ion
Capacity 7000 mAh, 3.7 V
Weight 160 g

Physical
Instrument
Height 44 mm (1,7 inch)
Length 187 mm (7.4 inch)
Width 215 mm (8.5 inch)
Weight 751 g (26.5 ounce)
USB cord length 1.5 m (59 inch)

I/O connectors
Channel 1, 2 BNC, female
AWG BNC, female
USB USB 3 type B Super Speed socket
LAN RJ45 socket
Extension connector D-sub 9 pins female
Power 3.5 mm power socket
CMI connectors 2 x HDMI type C socket

System requirements
PC I/O connection USB 1.1, USB 2.0 or newer
RJ45
WiFi
Operating system Windows 10 / 11, 64 bits
Linux (via own developed software using the libtiepie-hw SDK)

Environmental conditions
  Ambient temperature Relative humidity
Operating (with charging) 15 °C to 30 °C for rated accuracy
(10 °C to 35 °C without specifications)		 10 % to 90 %, non condensing
Operating (without charging) 15 °C to 35 °C for rated accuracy
(10 °C to 40 °C without specifications)		 10 % to 90 %, non condensing
Only charging 0 °C to 35 °C 10 % to 90 %, non condensing
Storage 0 °C to 35 °C 5 % to 95 %, non condensing

Certifications and Compliances
CE mark compliance Yes
RoHS Yes
EN 55011:2009/A1:2010 Yes
EN 55022:2006/A1:2007 Yes
EN 61000-6-1:2007 Yes
EN 61000-6-3:2007 Yes

Package contents
Instrument WiFiScope WS5
Oscilloscope probes 2 x Oscilloscope Probe 1:1-1:10 - HP-3250I
Accessories Handyscope / WiFiScope power supply
USB3 cable, 1.5 m long
network cable, 3 m long
Software for Windows 10 / 11, 64 bits, via website
Drivers for Windows 10 / 11, 64 bits, via website
Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
Manuals instrument manual and software user's manuals
color printed and digital, via website
