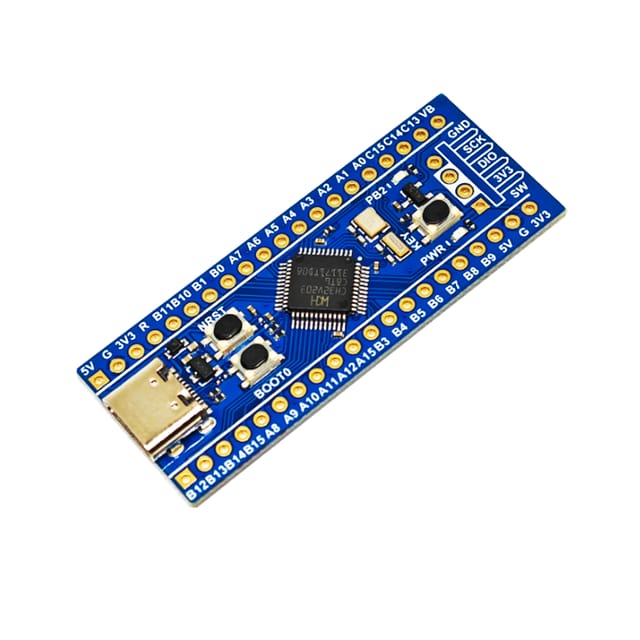

The WeAct Studio CH32V203C8T6 demo board is powered by the Qingke V4B processor, offering exceptional performance with a system clock frequency of up to 144MHz. It features 20KB of SRAM and 64KB of Flash memory, providing ample space for data storage and program execution. Operating at a supply voltage of 3.3V, the board’s GPIO unit is independently powered, offering enhanced flexibility for interfacing with external devices. The board supports various low-power modes, including sleep, stop, and standby, with ultra-low power consumption of 44.65uA/MHz in Run mode and 17.90uA/MHz in Sleep mode. It incorporates essential features such as power-on/power-down reset (POR/PDR), programmable voltage detector (PVD), 18-channel general DMA controllers, amplifiers, 12-bit ADC with TouchKey support, timers, USB2.0 host/device interfaces, UARTs, CAN interface, IIC/SPI interfaces, CRC calculation unit, 96-bit unique ID, and a serial 2-wire debug interface. This demo board is an ideal platform for developing low-power embedded applications requiring high performance and versatile connectivity.

Features:

1. Qingke V4B processor with up to 144MHz clock frequency
2. Independent GPIO unit with 3.3V supply voltage
3. Supports sleep/stop/standby low-power modes
4. Multiple interfaces including USB2.0, UARTs, CAN, IIC, SPI
5. Ultra-low power consumption in Run and Sleep modes
6. DMA Controllers: 18-channel general DMA controllers
7. Analog Features: 10-channel 12-bit ADC, 10-channel TouchKey, 2 amplifiers
8. Other Features: Power-on/power-down reset, programmable voltage detector,
9. CRC calculation unit, 96-bit unique ID, serial 2-wire debug interface

Package Includes:

1 x WeAct Studio CH32V203C8T6 RISC-V Low Power Core Demo Board
