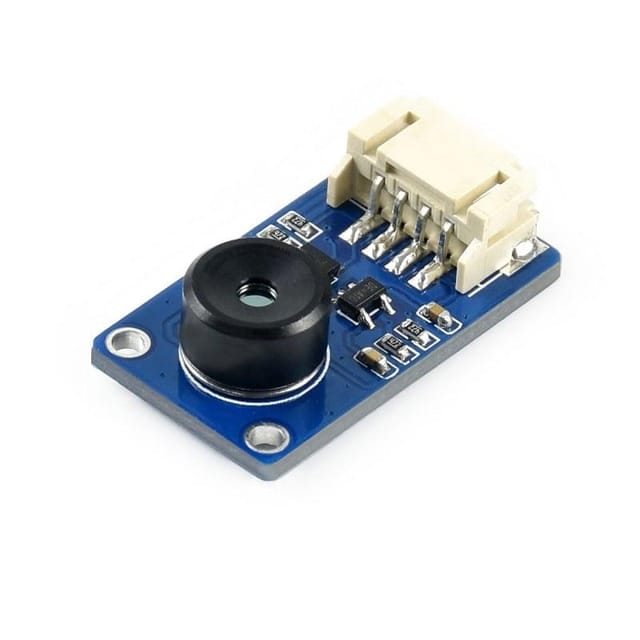

673ae90a1e0a4500248dc0da Waveshare MLX90640 IR Array Thermal Imaging Camera, 32*24 Pixels, 55* FOV https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/673ae90a1e0a4500248dc0dc/waveshare-mlx90640-ir-array-thermal-imaging-camera-1.jpg

This is a 32×24 pixel, 55° field of view, IR array thermal imaging camera, communicating via the I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.

By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.

In the case of working with MCU:

VCC ↔ 3.3V / 5V

GND ↔ GND

SDA ↔ MCU.I2C data line

SCL ↔ MCU.I2C clock line


Useful link:

For Software setup, please follow this tutorial.


Dimensions:



Waveshare Mlx90640 Ir Array Thermal Imaging Camera


Applications:
  1. High precision non-contact temperature measurements
  2. IR thermal imaging devices, IR thermometers
  3. Smart home, intelligent building, intelligent lighting
  4. Industrial temperature control, security monitoring, intrude/movement detection

Features:

  1. Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
  2. Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  3. Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate
  4. Onboard voltage translator, compatible with 3.3V/5V operating voltage
  5. Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Package Includes:

1 x MLX90640-D110 Thermal Camera

1 x PH2.0 4PIN wire

TT-RB-968463
in stock INR 11799
1 1

Waveshare MLX90640 IR Array Thermal Imaging Camera, 32*24 Pixels, 55* FOV

Sku: TT-RB-968463
₹11,799


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

This is a 32×24 pixel, 55° field of view, IR array thermal imaging camera, communicating via the I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.

By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.

In the case of working with MCU:

VCC ↔ 3.3V / 5V

GND ↔ GND

SDA ↔ MCU.I2C data line

SCL ↔ MCU.I2C clock line


Useful link:

For Software setup, please follow this tutorial.


Dimensions:



Waveshare Mlx90640 Ir Array Thermal Imaging Camera


Applications:
  1. High precision non-contact temperature measurements
  2. IR thermal imaging devices, IR thermometers
  3. Smart home, intelligent building, intelligent lighting
  4. Industrial temperature control, security monitoring, intrude/movement detection

Features:

  1. Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
  2. Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  3. Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate
  4. Onboard voltage translator, compatible with 3.3V/5V operating voltage
  5. Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Package Includes:

1 x MLX90640-D110 Thermal Camera

1 x PH2.0 4PIN wire
