Vector network analyzer module
SHOP FOR
https://www.tenettech.com
# 2514/U, 7th 'A' Main Road, Opp. to BBMP Swimming Pool, Hampinagar, Vijayanagar 2nd Stage. 560104 Bangalore IN
Tenettech E-Store
# 2514/U, 7th 'A' Main Road, Opp. to BBMP Swimming Pool, Hampinagar, Vijayanagar 2nd Stage. Bangalore, IN
+918023404924 https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/webp/59dafe26aef6e1d20402c4c3-480x480.png" info@tenettech.com
5f893657f8836a39f06db5a6 Vector network analyzer module https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/5f893488f3fe386f0c9570d5/webp/vna.png

Vector network analyzer is great solution to test and optimize performance of:

- Antennas ( SWR (return loss, S11) )
- RF filters
- RF switches
- couplers
- cables
- amplifiers
- isolators
- mixers
Note: To use the VNA application an additional VNA bridge module is needed. The VNA bridge module is available on our web store .VNA is a contributed Python application by Pavel Demin that runs on a WINDOWS or Linux OS.

SOFTWARE FEATURES
- plot formats: smith chart, impedance, SWR, ref. coeff, return loss
- supported calibration modes (open, short & load)
- measurement export
- marker readouts
- PC-controlled over LAN of WIFI from a Microsoft Windows interface

HARDWARE SPECIFICATIONS
- freq. range 500k to 62MHz
- directivity 42 dB, typical
- dynamic range: 74dB
- noise floor: - 88dBm

What is in the box:
- RF swr bridge in aluminium enclosure
- SMA male calibration accessories (50 ohm, open & short loads)
- 2x SMA to SMA cable

TT-RPS-018
in stockINR 11594
Redpitaya
1 1
XYZ Blog title
ABC Blog title here
Vector network analyzer module

Description of product

Vector network analyzer is great solution to test and optimize performance of:

- Antennas ( SWR (return loss, S11) )
- RF filters
- RF switches
- couplers
- cables
- amplifiers
- isolators
- mixers
Note: To use the VNA application an additional VNA bridge module is needed. The VNA bridge module is available on our web store .VNA is a contributed Python application by Pavel Demin that runs on a WINDOWS or Linux OS.

SOFTWARE FEATURES
- plot formats: smith chart, impedance, SWR, ref. coeff, return loss
- supported calibration modes (open, short & load)
- measurement export
- marker readouts
- PC-controlled over LAN of WIFI from a Microsoft Windows interface

HARDWARE SPECIFICATIONS
- freq. range 500k to 62MHz
- directivity 42 dB, typical
- dynamic range: 74dB
- noise floor: - 88dBm

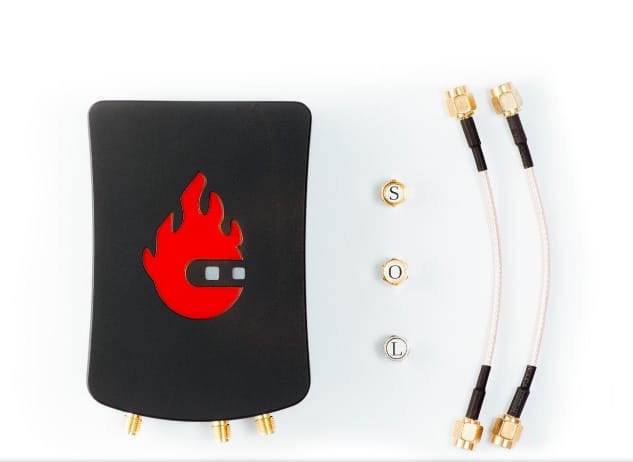

What is in the box:
- RF swr bridge in aluminium enclosure
- SMA male calibration accessories (50 ohm, open & short loads)
- 2x SMA to SMA cable
