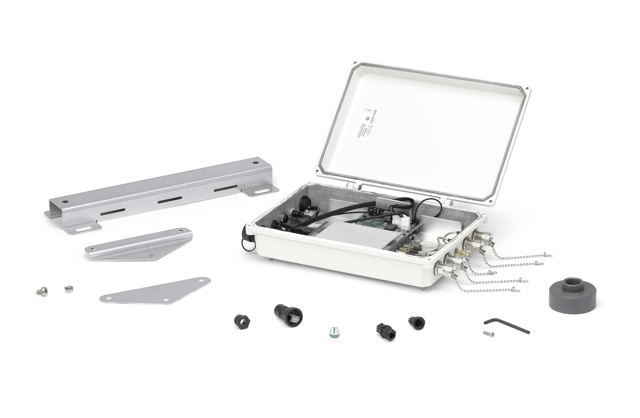

USRP E313 IP67-RATED OUTDOOR ENCLOSURE KIT (2x2 MIMO, 70MHz - 6GHz)

Description of product

The USRP E313 is a rugged and weatherproof SDR designed for outdoor deployment. Containing an embedded USRP E310 inside an IP67-rated enclosure, the USRP E313 provides ingress protection against dust and water with extensive testing to ensure operation under demanding environmental conditions. The USRP E313 conveniently supports PoE with surge and lightning protection.

This stand-alone SDR features a 2×2 MIMO transceiver providing up to 56 MHz of bandwidth spanning frequencies from 70 MHz to 6 GHz to cover multiple bands of interest. The baseband processor uses the Xilinx Zynq-7020 System-on-Chip to deliver FPGA accelerated computations combined with stand-alone operation enabled by a dual-core ARM CPU.

The USRP Embedded Series platform uses the OpenEmbedded framework to create custom Linux distributions tailored to application specific needs. To reduce development effort the default operating system supports the USRP Hardware Driver™ (UHD) software API, as well as a variety of third party tools such as GNU Radio. Support for the RF Network on Chip (RFNoC™) FPGA development framework enables deterministic computations for real-time and wideband signal processing. Users can rapidly prototype and reliably deploy designs for embedded applications intended for the unpredictable outdoors.

Features

  • Rugged and weatherproof for outdoor deployment
  • Fully assembled IP67-rated enclosure with USRP E310 inside
  • Extensive environmental testing
  • Power over Ethernet (PoE) with surge and lightning protection
  • Wide frequency range: 70 MHz – 6 GHz
  • Up to 56 MHz of instantaneous bandwidth
  • 2×2 MIMO transceiver
  • RX, TX filter banks
  • Xilinx Zynq 7020 SoC: 7 Series FPGA with ARM Cortex A9 866 MHz dual-core processor
  • Up to 10 MS/s sample data transfer rate to ARM processor
  • Synchronization with PPS time reference
  • Integrated GPS receiver
  • 9-axis inertial measurement unit
  • Host USB
  • 1 Gigabit Ethernet
  • 186 x 280 x 106 mm form factor
  • OpenEmbedded build framework
  • USRP Hardware Driver™ (UHD) open-source software API version 3.9.2 or later
  • RF Network on Chip (RFNoC™) FPGA development framework
  • GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio
