- UP Squared gateway.Pentium N4200, w/8G memory,64G eMMC board.w/oVESA plate

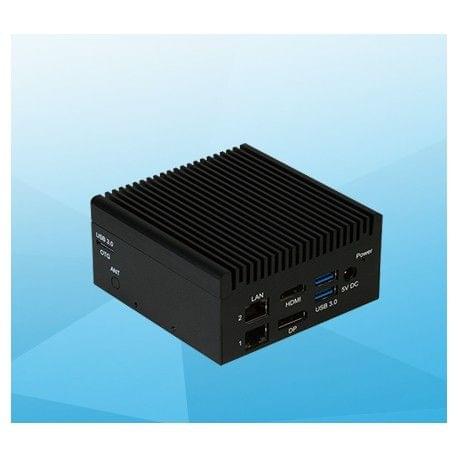

UP Squared gateway.Pentium N4200, w/8G memory,64G eMMC board.w/oVESA plate
SKU: TT-UP-UPS-GWS01P4-A20-0864
- 3 - 6 Weeks
UP Squared gateway.Pentium N4200, w/8G memory,64G eMMC board.w/oVESA plate
- 3 - 6 Weeks
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Description of product
- Intel® Apollo Lake SoC Pentium N4200
- On board 8GB LPDDR4 memory, 64GB eMMC Storage
- 2 x Gigabit LAN,
- 1 x HDMI
- 3 x USB 3.0, 1 x USB 3.0 OTG
- WiFi & BT ( optional via PN: RE-UPWFKITEXAR1)
- 3G( optional via PN: RE-UP3GKITSIM01)
The mainboard inside the system is a standard UP Squared board with all the standard features.
| SoC | Intel Pentium Quad Core up to 2.5Ghz N4200 |
| Graphics | Intel HD Graphic 500 |
| System memory | 8GB LPDDR4 |
| Storage capacity | 64GB eMMC |
| USB2.0 port (pin header) | x2 |
| USB 3.0 port | x4 ( one OTG) |
| Ethernet | 2x Gb Ethernet (full speed) RJ-45 |
| Video output | HDMI+DP |
| Power input | 5V DC-in @ 3A 5.5/2.1mm jack |
| RTC | YES |
| PXE | YES |
| WOL | YES |
| Operating humidity | 10%～80%RH non-condensing |
| Compatible operating system | Microsoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android |
| Certificate | CE/FCC Class A, RoHS complaint Microsoft Azure certified |
| CEC | No |
| mPCI-e | x1 |
| M.2 2230 E-key | x1 |
| Country of Origin | Taiwan |
