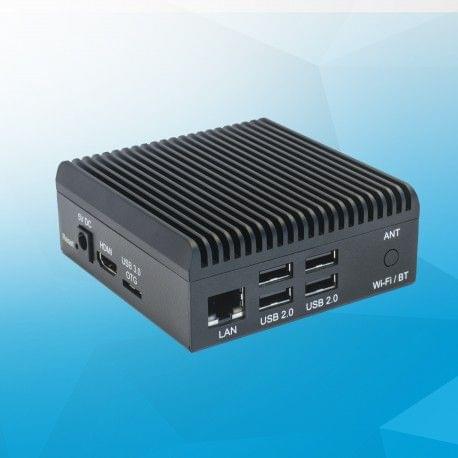

UP-GWS01.w/4G memory,32G eMMC board.w/ VESA plate
UP-GWS01.w/4G memory,32G eMMC board.w/ VESA plate

Description of product

  • Intel® Cherry Trail x5-Z8350 SoC
  • On board DDR3L 4GB memory
  • On board 32GB  eMMC storage
  • 1x Gigabit LAN, 4x USB 2.0, 1xUSB 3.0,1x HDMI
  • Optimized Fan-less Cooling Design
  • CE/FCC certified
  • Including VESA 75 and 100 mounting kit
  • Wi-Fi (Optional)--available here
  • BT 4.0 (Optional)--coming soon

      The mainboard inside the system is a standard UP board with all the standard features.




SoCIntel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
GraphicsIntel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory4GB DDR3L
Storage capacity32GB eMMC
USB2.0 external connectorx4
USB2.0 port (pin header)x2
USB 3.0 portx1 ( OTG)
Ethernet1x Gb Ethernet (full speed) RJ-45
Video outputHDMI
Power input5V DC-in @ 3A 5.5/2.1mm jack
RTCYES
PXEYES
WOLYES
Operating humidity10%~80%RH non-condensing
Compatible operating systemMicrosoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
CertificateCE/FCC Class A, RoHS complaint Microsoft Azure certified
CECNo
