UP board 2GB + 32 GB eMMC memory

Description of product

UP unleashes the power of the Intel x5-Z8350 QuadCore 1.44Ghz (1.92GHz) 64 bit 2W SDP CPU.

The 40 Pin I/O connector, the USB 3.0 OTG, the Gigabit Ethernet, the HDMI and more other features make it a perfect solution for different domains and products like Robotics, Drone, Machine Vision, Smart Home, Education, Digital Signage, Intelligent Cars, Internet Of Things. The compatibility with Linux, Android, and all the Windows 10 distributions give you great flexibility, scalability and quick time to market.

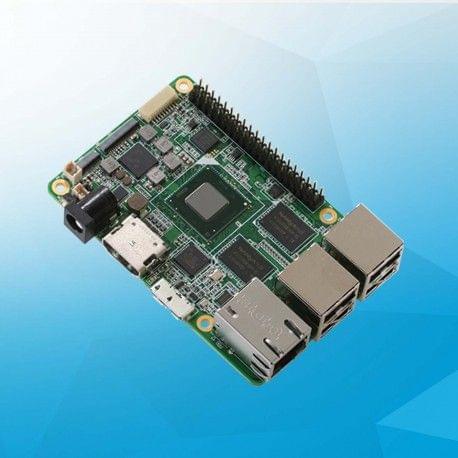

Offered is one UP board,featuring with X5-Z8350 CPU with 32GB eMMC & 2GB RAM on board.


Box contents:
- UP board
- Heatsink
- RTC battery

Note: This product comes without operating system


UP board versionUP
SoCIntel® Atom™ x5 Z8350 Processor 64 bit - up to 1.92GHz
GraphicsIntel® HD 400 Graphics ,12 EU GEN 8, up to 500MHz Support DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL ES3.0, H.264, HEVC(decode), VP8
System memory2GB DDR3L
Storage capacity32GB eMMC
USB2.0 external connectorx4
USB2.0 port (pin header)x2
USB 3.0 portx1 ( OTG)
Ethernet1x Gb Ethernet (full speed) RJ-45
Video outputHDMI
Display interfaceDSI / eDP
Camera InterfaceMIPI-CSI
Power input5V DC-in @ 3A 5.5/2.1mm jack
RTCYES
PXEYES
WOLYES
Operating humidity10%~80%RH non-condensing
Operating tempature32-140°F / 0~60°C
Expansion40 pin General Purpose bus, supported by Altera Max V. ADC 8-bit@188ksos
Compatible operating systemMicrosoft Windows 10 full version , Linux (ubilinux, Ubuntu, Yocto) • Android
CertificateCE/FCC Class A, RoHS complaint Microsoft Azure certified
Dimension3.37" x 2.22" / 85.60 mm × 56.5 mm
Net Weight (without package)80 gram (w/ passive heatsink)
CECNo
HS code8473300000
package dimension15*9*5 cm
Gross weight140 gram
Country of OriginTaiwan
