UC3845BD1R2G-ONSEMI-PWM Controller, 25V-12V supply, 250 kHz, 13.4V/12mA out, SOIC-8.The UC3845BD1R2G is a high-performance fixed frequency current-mode Pulse Width Modulation (PWM) Controller specifically designed for off-line and DC to DC converter applications offering the designer a cost-effective solution with minimal external components. It features an oscillator, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totem pole output ideally suited for driving a power MOSFET. Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, cycle-by-cycle current limiting, a latch for single pulse metering and a flip-flop which blanks the output off every other oscillator cycle, allowing output deadtimes to be programmed from 50 to 70%.

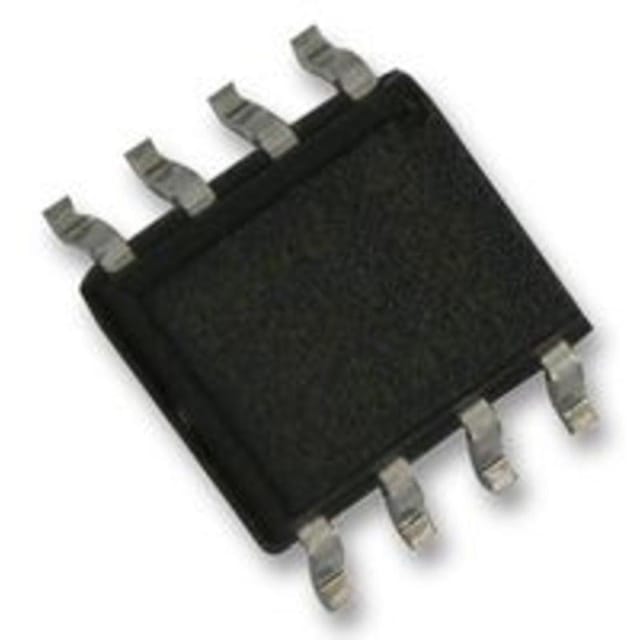

Note: Images for reference only.

Specifications:

Power Supply Controller Type:: Single Ended Controller
No. of Channels:: 1Channels
Control Mode:: Current Mode Control
Supply Voltage Max:: 25V
No. of Pins:: 8Pins
Switching Frequency Typ:: 52kHz
Duty Cycle Max:: 50%
Topology:: Boost, Flyback, Inverting

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x UC3845BD1R2G-ONSEMI-PWM Controller, 25V-12V supply, 250 kHz, 13.4V/12mA out, SOIC-8
