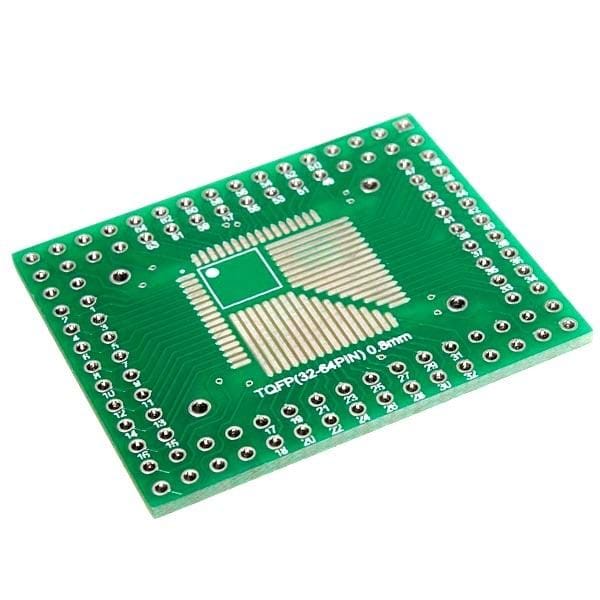

This is a Double-Side TQFP32/44/64/80/100 to DIP PCB Board Converter Adapter. A side for pin pitch size 0.8mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin~64pin) to 2.54mm DIP. B side for pin pitch size 0.5mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin~100pin) to 2.54mm DIP.

This TQFP32/44/64/80/100 to DIP PCB Board Converter Adapter also suitable for STC89C, ATmega, STM32F, MSP430 series of MCU or other compatibles.

Note : Product is available in two different dimension 46 mm x 38mm and 41mm x 35mm we will as per ship according stock availability.

Features:

1. QFP/TQFP/LQFP/FQFP 32/44/64/80/100 pin switch over DIP double-sided pinboard
2. Double-sided FR-4PCB, unique design makes the board compatible with more models of IC packages QFP
3. A side of the patch 32 pin -100 pin turn DIP, 0.5mm spacing
4. The other side is 32 pin -64 pin, pitch 0.8mm pitch.
5. High-quality PCB FR4 Grade with FPT Certified.

Package Includes:

1 x TQFP32/44/64/80/100 to DIP PCB Board Converter Adapter-1Pcs.
