Temp&Hum Click
Temp&Hum Click

Description of product

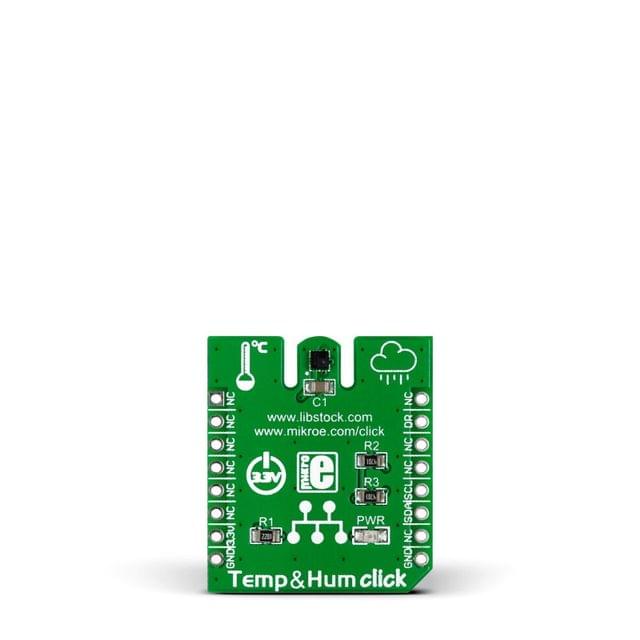

Temp&Hum click carries ST’s HTS221 temperature and relative humidity sensor. Its temperature measurement accuracy is ±1°C within a 0-60°C range. The precision is increased to ±0.5°C in a narrower range from 15 to 40°C. The highly sensitive relative humidity measurement range is from 0 to 100% with ±6% accuracy (or ±4.5 in 20-80% range) The measurements are outputted in a 16-bit resolution through the mikroBUS I2C interface. The board uses a 3.3V power supply.




SPECIFICATION

TypeTemperature,Humidity
ApplicationsAC units, humidifiers, wearable devices…
On-board modulesST’s HTS221 temperature and relative humidity sensor
Key FeaturesHigh relative humidity sensitivity: 0.004% rH. 0-60°C temperature range (with ±1°C accuracy). 0-100% relative humidity range (±4.5% rH accuracy in 20-80% range)
InterfaceI2C,GPIO
Input Voltage3.3V or 5V
CompatibilitymikroBUS
Click board sizeS (28.6 x 25.4 mm)
