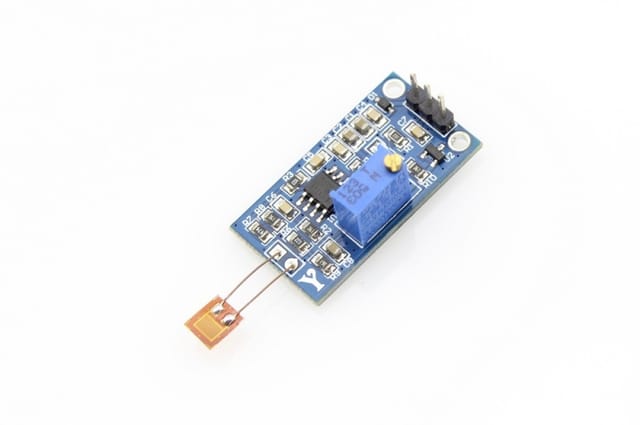

5fa525f68fd9f06291323eb2 Strain Gauge Module https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/5fa5247d30f38c6324e22267/webp/800px-strain_gauge_module.jpg

A strain gaugeis a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA to detect the strain, with the amplifier and potentiometer on the board to adjust the measured results, users can easily get the result with any microcontroller such as Arduino.
This module can be positively used in measuring deformation (for example, across a bridge by loading positions and effects) in engineering and in physical distortions proportional to loading or thermal environments. In the everyday world, this module can be used to applications such as gating a traffic light into a new sequence when a car on a lightly traveled side-street enters a Tee-intersection.

Specifications

  • Working Voltage: 5VDC
  • Analog Output 0~3.5VDC
  • Potentiometer to adjust the zero point;
  • Dimension: 32mm X 17mm
TT-ELS-001
in stockINR 5616
1 1
XYZ Blog title
ABC Blog title here
Strain Gauge Module

Description of product

A strain gaugeis a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA to detect the strain, with the amplifier and potentiometer on the board to adjust the measured results, users can easily get the result with any microcontroller such as Arduino.
This module can be positively used in measuring deformation (for example, across a bridge by loading positions and effects) in engineering and in physical distortions proportional to loading or thermal environments. In the everyday world, this module can be used to applications such as gating a traffic light into a new sequence when a car on a lightly traveled side-street enters a Tee-intersection.

Specifications

  • Working Voltage: 5VDC
  • Analog Output 0~3.5VDC
  • Potentiometer to adjust the zero point;
  • Dimension: 32mm X 17mm
