Sonoff Basic Wi-Fi Wireless Switch Kit

Description of product

Home automation is"The Internet of Things". It simply means the way all devices or appliances are networked together to provide users with a seamless control over their home equipment.

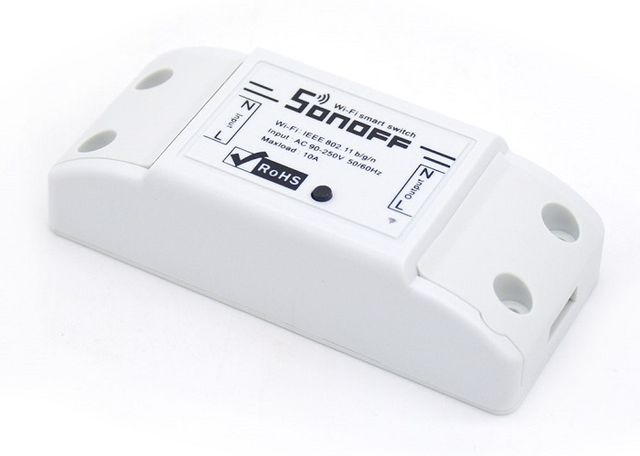

Sonoff Basic is an affordable WiFi smart switch that provides users with smart home control. It is a remote control power switch that can connect to a wide range of appliances. Sonoff Basic WiFi electrical switch transmits data to a cloud platform through the WiFi Router, which enables users to remotely control all the connected appliances, via the mobile application eWeLink. The server is Amazon AWS global server.



Sonoff IP66 is a high quality waterproof case that can be used with Sonoff Basic in the underwater environment. The waterproof level of the waterproof box is IP66. It allows you to remote control your lights or home appliances outdoor. Just get it to control your Christmas tree lightings! Read the detailed installation guide.



Sonoff WiFi controlled switch makes all home appliances smart. As long as the mobile phone has network(2G/3G/4G/WiFi), users can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timers for the appliances, which can include countdown/scheduled/loop timers, and can thus, help users maintain an easy life.



The mobile application eWeLink enables users to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.

Features

Supports WiFi network.

Supports status tracking: device status timely provided to the EWeLink.

Supports remotely turn on or off connected appliance/light.

Supports max 8 enabled scheduled/countdown/loop timers for each device.

Supports numerous WiFi smart switches on one smartphone.

Works with Amazon Echo, Echo Dot, Amazon Tap

Works with Google Home, Google Home Mini, Google Nest

Works with IFTTT


Documents

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

Technical Details

Dimensions132.2mm x 68.7mm x 50.1mm
WeightG.W 200g
BatteryExclude
Specification for Sonoff Basic
Voltage range90-250v AC(50/60Hz)
Max current10A
Max Wattage2200W
Sonoff Basic Dimensions88*38*23mm (L*W*H)
Enclosure MaterialFire-retardant ABS V0
Humidity5%-90%RH, Non-condensing
Wireless Standard802.11 b/g/n
Security MechanismWPA-PSK/WPA2-PSK
Operating Temperature0ºC-40ºC(32°F-104°F)
ColorWhite
Sonoff Basic Weight51.0g
Gang1
Specification for IP66 Waterproof Case
Waterproof LevelIP66
Body MaterialABS V0
Transparent Cover MaterialPC V0
IP66 Waterproof Case Dimensions132.2*68.7*50.1mm(L*W*H)
Weight145.0g

Part List

Sonoff Basic1
IP66 Waterproof Case1
