The SMTS sub-miniature toggle switches are offered in both SPDT and DPDT. These switches come with a variety of switching functions and bushing options. Eight different termination options are available. Applications include telecommunications, instrumentation, networking, and medical equipment devices.

Specifications:

1. Housing: PA66
2. Lever: Brass with Nickel plated
3. Terminal: Brass with sliver plated
4. Torque: Max. 5kg·cm (70 ounce·inch)
5. Rating: 3A 125VAC/1.5A 250VAC
6. Contact Resistance: 20mΩ max
7. Electrical Life: ≥ 10,000 Cycles
8. Mechanical Life: ≥ 100,000 Cycles
9. Dielectric strength: 1000VAC 1 minute
10. Operating Temperature: -25℃~+85℃
11. Insulation Resistance: 1000mΩ min (500VDC)
12. OEM or ODM: Available

Package Includes:

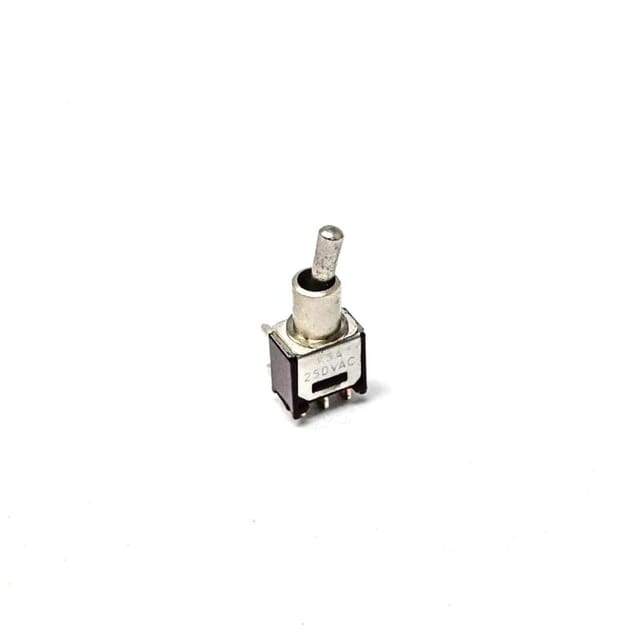

1 x SMTS-103-2C3-Sub Miniature Toggle Switch-3 Pin(ON-OFF-ON)
