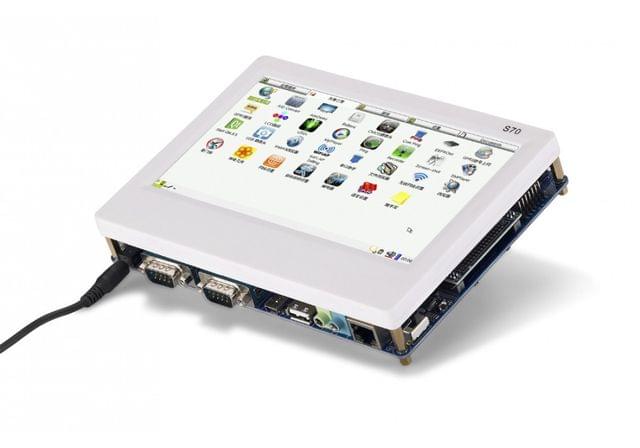

Smart210 SDK set (1G Flash) + 7"LCD resistive LCD (S70) + Standard Accessories

Description of product

Description

A complete high performance Single Board Computer to get you startered immediately with high end computing in a small package.
The Smart210 CPU board has 2.0 mm spacing double row pitch headers (P1, P2, P3 and P4) which connect the Smart210 to a carrier board and extend most of the CPU’s pins. Its size (74 x 55 mm) is bigger than the Tiny210 CPU board. P1 and P2 are standard configurations, and P3 and P4 are left for users. The standard version integrates 512M DDR2 RAM and 512M Flash (1G Flash optional) and can run Android, Linux and WinCE6. These features make it easily and widely used in MID development, Android notepads, auto electronic devices, industrial applications, GPS systems and multimedia systems.


Specification : CPU Module V1304
  • Dimension: 74 x 55 mm    
  • CPU: 1GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
  • RAM:1G, 32 bit Bus
  • Flash: up to 1GB NAND Flash
  • Ethernet: 10/100M (DM9000)
  • Audio: WM8960 codec
  • Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
  • Analog Input and Output
  • User Outputs: 4x LEDs
  • Expansion headers (2.0 mm)
  • Power: 2-6V
  • OS Support
  • Windows CE 6
  • Linux
  • Android

Specification: SDK(Carrier)-Board V1305

Dimension:
  • 180 x 140 mm
  • 1 x 40 pin LCD interface
  • 1 x 45 pin LCD interface
  • 1 x HDMI Type A
  • 1 x Ethernet: RJ-45 10/100M (DM9000AEP)
  • 2 x Serial Port DB9 connector (RS232)
  • 4 x TTL
  • 1 x Mini USB Slave 2.0
  • 1 x Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
  • 1 x Audio Input: Condenser microphone
  • 4 x USB-A Host 2.0
  • 1 x SD Card socket
  • 1 x 5V Power input
  • 1 x EEPROM: 256 Byte (I2C)
  • 8 x User button (interrupt)
  • 1 x PWM buzzer
  • 1 x Lithium battery
  • 1 x G-Sensor
  • 1 x GPIO pin connector
  • 1 x CMOS Camera interface
  • 1 x MIPI interface
