Description of product

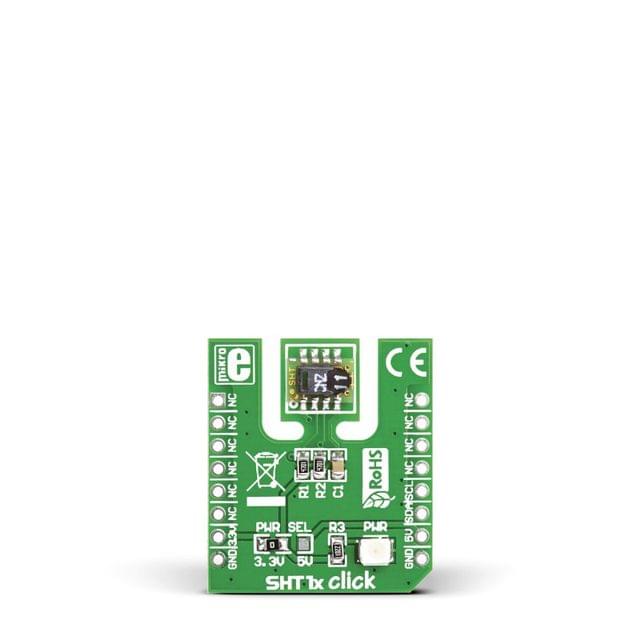

SHT11 Click is an accessory board in mikroBus™ form factor. It includes a digital humidity and temperature sensor SHT11. A unique capacitive sensor element is used to measure relative humidity while the temperature is measured by a band-gap sensor. Serial I2C interface and factory calibration, allow easy and fast system integration. Board is set to use 3.3V power supply by default. Solder PWR SEL SMD jumper to 5V position if used with 5V systems.

SPECIFICATION

Type Humidity,Temperature
Applications Board is convenient for high-speed precise humidity and temperature measurement devices.
On-board modules Digital humidity and temperature sensor SHT11
Key Features Temperature can be represented in 12-bit or 14-bit format in operating range from -40 to +100°C with accuracy of +/-0.5°C at room temperature
Key Benefits Humidity can be represented in 8-bit or 12-bit resolution with +/-3% accuracy
Interface I2C
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
